Weโll demonstrate some of the capabilities of astsa โฆ the NEWS page has additional installation information.
Remember to load astsa at the start of a sessionโฆ
library(astsa)
itโs more than just data โฆ itโs a palindrome
โญโญโญโญโญโญโญโญโญ
๐ข Note: When you are in a code block below, you can copy the contents of the block by moving your mouse to the upper right corner and clicking on the copy icon ( โง ).
Table of Contents
- 1. Data
- 2. Plotting
- 3. Correlations
- 4. ARIMA
- 5. Spectral Analysis
- 6. Detecting Structural Breaks
- 7. Testing for Linearity
- 8. State Space Models and Kalman Filtering
- 9. EM Algorithm and Missing Data
- 10. Bayesian Techniques
- 11. Stochastic Volatility Models
- 12. Arithmetic
- 13. The Spectral Envelope
1. Data
๐ก There are lots of fun data sets included in astsa. Hereโs a list obtained by issuing the command
data(package = "astsa")
And you can get more information on any individual set using the help() command, e.g.
help(cardox) or ?cardox
| Name | Title |
|---|---|
| BCJ | Daily Returns of Three Banks |
| EBV | Entire Epstein-Barr Virus (EBV) Nucleotide Sequence |
| ENSO | El Niรฑo - Southern Oscillation Index |
| EQ5 | Seismic Trace of Earthquake number 5 |
| EQcount | Earthquake Counts |
| EXP6 | Seismic Trace of Explosion number 6 |
| GDP (GDP23) | Quarterly U.S. GDP - updated to 2023 |
| GNP (GNP23) | Quarterly U.S. GNP - updated to 2023 |
| HCT | Hematocrit Levels |
| Hare | Snowshoe Hare |
| Lynx | Canadian Lynx (not the same as R dataset lynx ) |
| MEI | Multivariate ENSO Index (version 1) 1950 - 2019 |
| MEI2 | Multivariate ENSO Index (version 2) 1979 - 2025 |
| PLT | Platelet Levels |
| USpop / USpop20 | U.S. Population - 1900 to 2010 / 2020 (2 different files) |
| UnempRate | U.S. Unemployment Rate |
| WBC | White Blood Cell Levels |
| ar1miss | AR with Missing Values |
| arf | Simulated ARFIMA |
| beamd | Infrasonic Signal from a Nuclear Explosion |
| birth | U.S. Monthly Live Births |

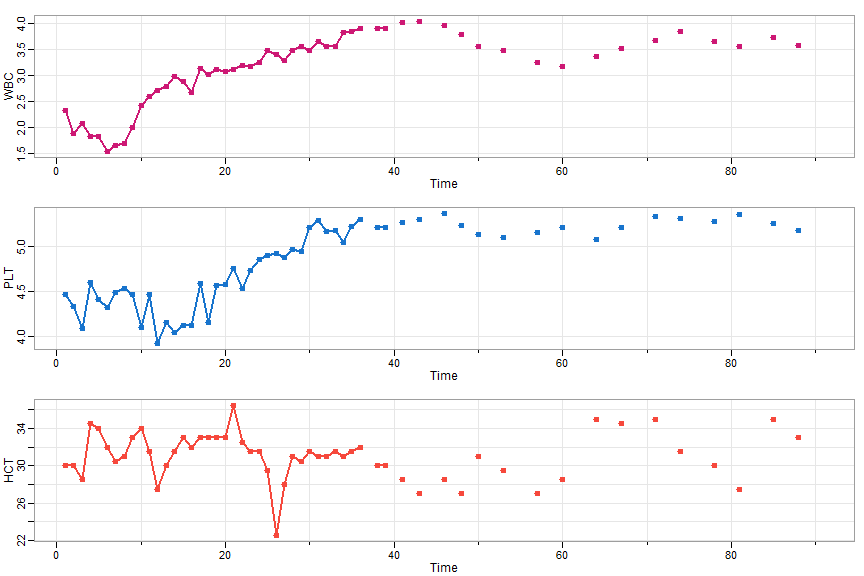

| blood | Daily Blood Work with Missing Values |
| bnrf1ebv | Nucleotide sequence - BNRF1 Epstein-Barr |
| bnrf1hvs | Nucleotide sequence - BNRF1 of Herpesvirus saimiri |
| cardox | Monthly Carbon Dioxide Levels at Mauna Loa |
| chicken | Monthly price of a pound of chicken |
| climhyd | Lake Shasta inflow data |
| cmort | Cardiovascular Mortality from the LA Pollution study |
| cpg | Hard Drive Cost per GB |
| djia | Dow Jones Industrial Average |
| econ5 | Five Quarterly Economic Series |
| eqexp | Earthquake and Explosion Series โ the map |
| flu | Monthly pneumonia and influenza deaths in the U.S., 1968 to 1978. |
| fmri | fMRI - complete data set |
| fmri1 | fMRI Data Used in Chapter 1 |
| gas | Gas Prices |
| gdp | Quarterly U.S. GDP |
| gnp | Quarterly U.S. GNP |
| gtemp.month | Monthly global average surface temperatures by year |
| gtemp_both | Global mean land and open ocean temperature deviations, 1850-2023 |
| gtemp_land | Global mean land temperature deviations, 1850-2023 |
| gtemp_ocean | Global mean ocean temperature deviations, 1850-2023 |
| hor | Hawaiian occupancy rates |
| jj | Johnson and Johnson Quarterly Earnings Per Share |
| lap | LA Pollution-Mortality Study |
| lap.xts | LA Pollution-Mortality Study Daily Observations |
| lead | Leading Indicator |
| nyse | Returns of the New York Stock Exchange |
| oil | Crude oil, WTI spot price FOB |
| part | Particulate levels from the LA pollution study |
| polio | Poliomyelitis cases in US |
| prodn | Monthly Federal Reserve Board Production Index |
| qinfl | Quarterly Inflation |
| qintr | Quarterly Interest Rate |
| rec | Recruitment (number of new fish index) |
| sales | Sales |
| salmon | Monthly export price of salmon |
| salt | Salt Profiles |
| saltemp | Temperature Profiles |
| sleep1 | Sleep State and Movement Data - Group 1 |
| sleep2 | Sleep State and Movement Data - Group 2 |
| so2 | SO2 levels from the LA pollution study |
| soi | Southern Oscillation Index |
| soiltemp | Spatial Grid of Surface Soil Temperatures |
| sp500.gr | Returns of the S&P 500 |
| sp500w | Weekly Growth Rate of the Standard and Poorโs 500 |
| speech | Speech Recording |
| star | Variable Star |
| sunspotz | Biannual Sunspot Numbers |
| tempr | Temperatures from the LA pollution study |
| unemp | U.S. Unemployment |
| varve | Annual Varve Series |
2. Plotting
Colors
๐ก When astsa is loaded, the astsa palette is attached. The palette is especially suited for plotting time series and it is a bit darker than the new default R4 palette. You can revert back using palette("default"). Also,
astsa.col()
is included to easily adjust the opacity of the colors.

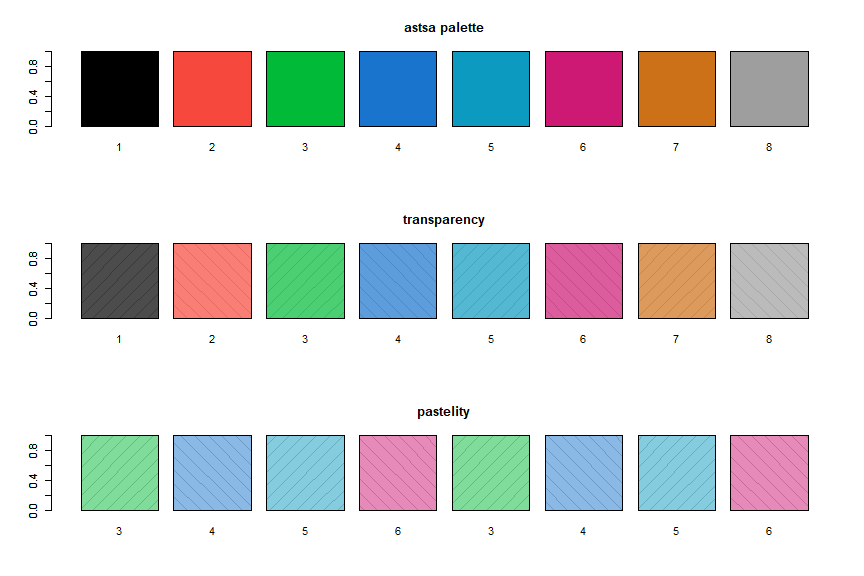

par(mfrow=c(3,1))
barplot(rep(1,8), density=10, angle=c(45, -45), main='astsa palette')
barplot(rep(1,8), col=1:8, names=1:8, add=TRUE)
barplot(rep(1,8), density=10, angle=c(45, -45), main='transparency')
barplot(rep(1,8), col=astsa.col(1:8, .7), names=1:8, add=TRUE)
barplot(rep(1,8), density=10, angle=c(45, -45), main='pastelity')
barplot(rep(1,8), col=astsa.col(3:6, .5), names=rep(3:6, 2), add=TRUE)
Notice each color display has diagonal lines behind it to demonstrate opacity.
Color Wheel

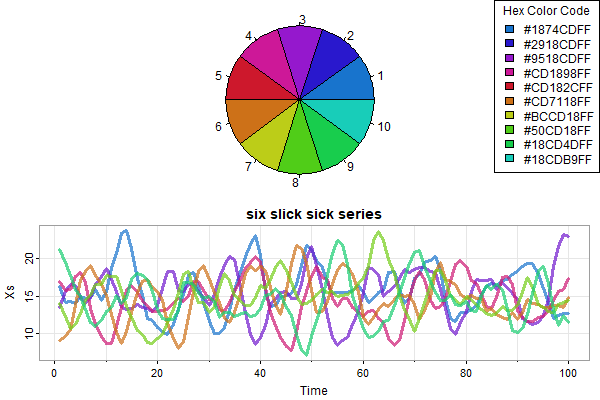

๐ NEW ๐: astsa.col now can create a color wheel with a user specified number of colors based on a chosen color. Also included is the option to show a pie chart of the colors for inspection before use. Hereโs some examples (with bells and whistles):
par(mfrow=2:1, mar=rep(0,4))
astsa.col(4, wheel=TRUE, pie=TRUE, num=10) -> u
legend('topright', legend=u, fill=u, title='Hex Color Code')
x = replicate(6, 15+sarima.sim(ar=c(1.5,-.75), n=100))
tsplot(x, ylab='Xs', main='six slick sick series', spag=TRUE, col=astsa.col(4, alpha=.7, wheel=TRUE, num=6), lwd=3)
tsplot
๐ต For plotting time series and just about anything else, you can use
tsplot()
๐ Notice there are minor ticks and a grid by default. Here are some examples.
par(mfrow=c(2,1))

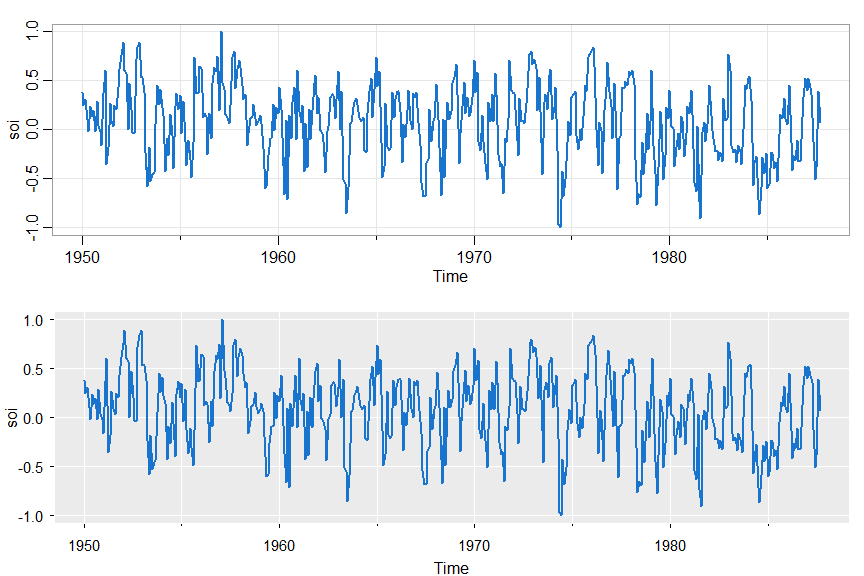

tsplot(soi, col=4, lwd=2)
tsplot(soi, col=4, lwd=2, gg=TRUE) # gg => gris-gris plot - the grammar of astsa is voodoo
๐ต Many in one swell foop:

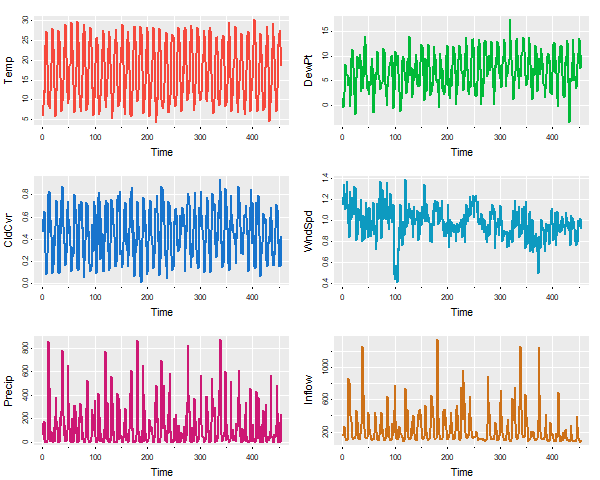

tsplot(climhyd, ncol=2, gg=TRUE, col=2:7, lwd=2)
The number of columns (ncolm) is user specified and not automated in any way.
๐ต Do you like spaghetti (you can shorten it to spag):
โ In version 2.2 and beyond, you can use addLegend in tsplot with spaghetti plots (more than 1 series on the same plate).

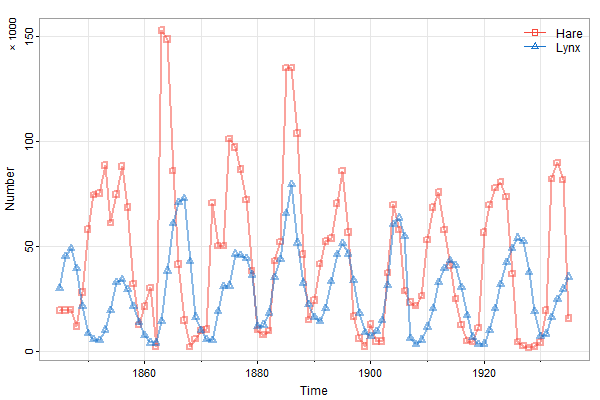

tsplot(cbind(Hare,Lynx), col=astsa.col(c(2,4),.5), lwd=2, type="o", pch=c(0,2),ylab='Number', spaghetti=TRUE, addLegend=TRUE)
mtext('\u00D7 1000', side=2, adj=1, line=1.5, cex=.8)
If you need more control, you can still use legend:
tsplot(cbind(Hare,Lynx), col=astsa.col(c(2,4),.5), lwd=2, type="o", pch=c(0,2), ylab='Number', spaghetti=TRUE)
mtext('\u00D7 1000', side=2, adj=1, line=1.5, cex=.8)
legend("topright", legend=c("Hare","Lynx"), col=c(2,4), lty=1, pch=c(0,2), bty="n")
๐ And another easy-add legend for spaghetti plots:
# quick and easy legend

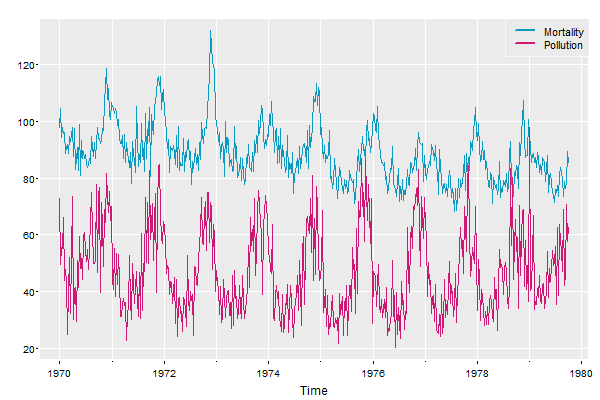

tsplot(cbind(Mortality=cmort, Pollution=part), col=5:6, gg=TRUE, spaghetti=TRUE, addLegend=TRUE, llwd=2)
๐ And you can still have spaghetti in the land where the LLN ceases to exist:
x <- replicate(100, cumsum(rcauchy(1000))/1:1000)

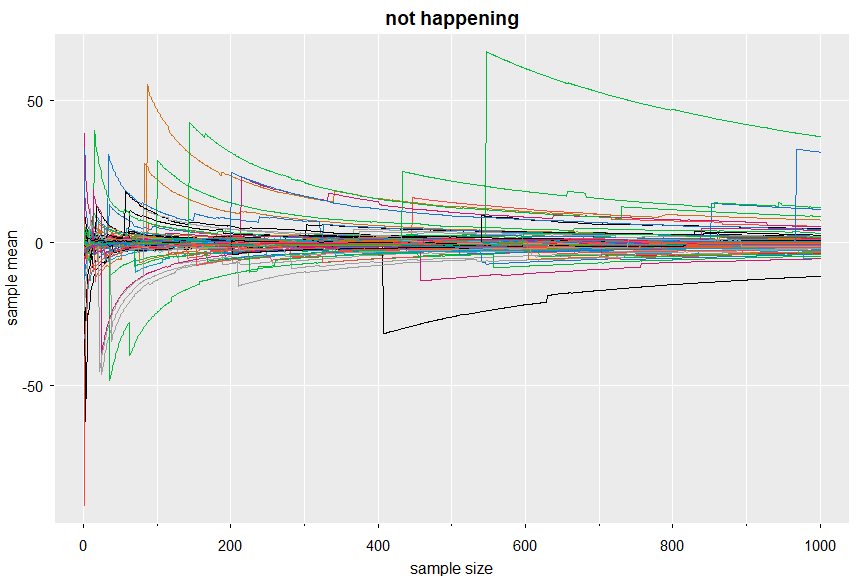

tsplot(x, col=1:8, main='not happening', spaghetti=TRUE, gg=TRUE, ylab="sample mean", xlab="sample size")
๐ timex โฆ keeps on ticking
There are a few xts data files in astsa and we recommend installing the package (and consequently zoo) if you are analyzing time series. But, in case xts is not available, you can still plot the series using the actual times as of astsa version 2.4.

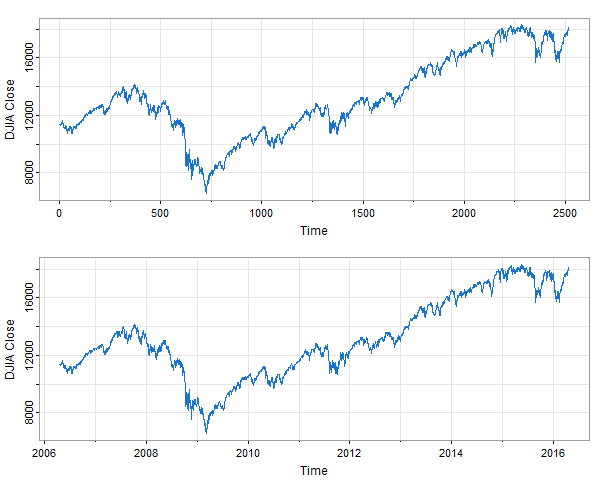

Hereโs an example using djia.
par(mfrow=2:1)
tsplot(djia[,'Close'], col=4, ylab='DJIA Close') # no dates
tsplot(timex(djia), djia[,'Close'], col=4, ylab='DJIA Close') # yes dates
In the top plot, the dates on the time axis are missing. The script timex takes the โunix time stampโ dates from the xts data file and converts them to decimal time; e.g., September 1, 2010 is approximately 2010.666 because it is day 243 of that 365-day year (Jan 1 being day zero).
Lag Plots
๐ฆ There are also lag plots for one series and for two series using
lag1.plot()orlag2.plot()
By default, the graphic displays the sample ACF or CCF and a lowess fit. They can be turned off individually (?lag1.plot or ?lag2.plot for more info).
First, for one series
# minimal call

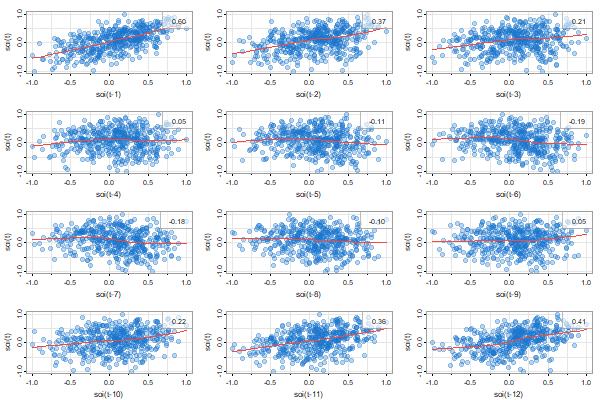

lag1.plot(soi, 12)
# but prettified
lag1.plot(soi, 12, col=astsa.col(4, .3), pch=20, cex=2)
and for two series (the first one gets lagged)
# minimal call - the first series gets lagged
lag2.plot(soi, rec, 8)
# but prettified
lag2.plot(soi, rec, 8, pch=19, col=5, lwl=2, gg=TRUE)
As of version 2.3, you can change the location of the ACF values:

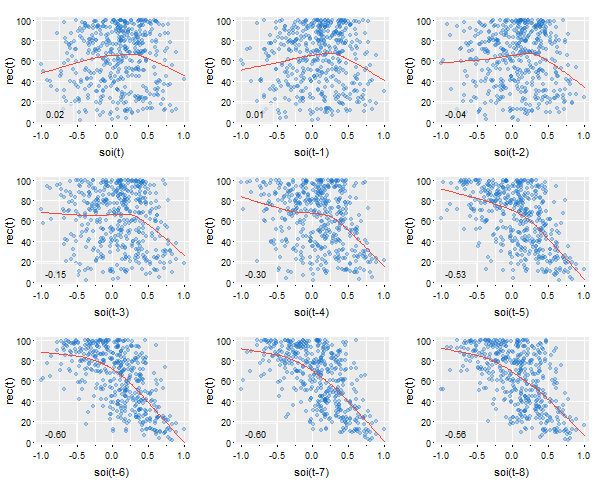

lag2.plot(soi, rec, 8, pch=19, col=astsa.col(4,.3), gg=TRUE, location='bottomleft')
๐ญ As previously mentioned, you can turn off the correlation or smooth displays by setting those things to FALSE (in either script); e.g.,
lag1.plot(diff(log(GDP)), 4, corr=FALSE, smooth=FALSE) # not shown
Scatterplots
Aside from lag plots, we have some additional scripts for doing scatterplot matrices.
๐น There is now tspairs, which is an astsa version of stats::pairs for time series. Itโs used in ar.boot and ar.mcmc now. Here are two examples:

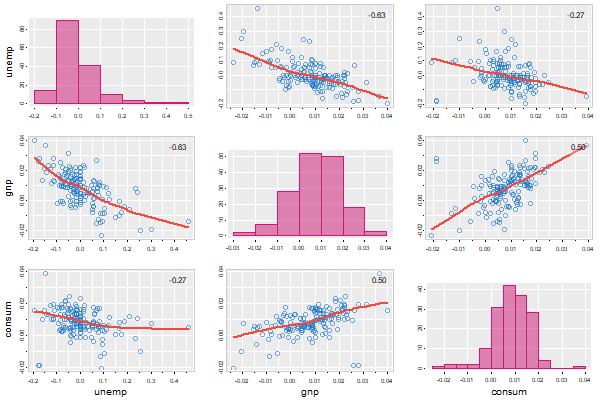

tspairs(diff(log(econ5[,1:3])), col.diag=6, pt.size=1.5, lwl=2, gg=TRUE, las=0)

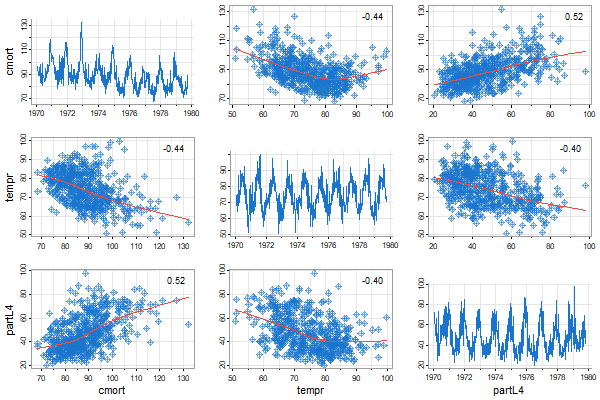

tspairs(ts.intersect(cmort,tempr,partL4=lag(part,-4)), hist=FALSE, pch=9, scale=1.1)
๐ Sometimes itโs nice to have a scatterplot with marginal histogramsโฆ

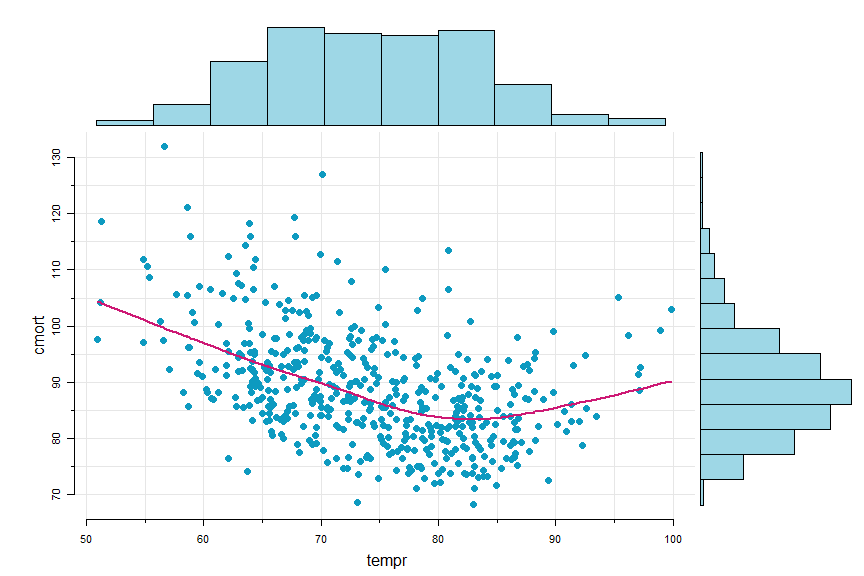

scatter.hist(tempr, cmort, hist.col=astsa.col(5,.4), pt.col=5, pt.size=1.5, reset=FALSE)
lines(lowess(tempr, cmort), col=6, lwd=2) # with reset=FALSE, can add to the scatterplot
Trends
๐ฒ There are two scripts to help with analyzing trends. They are
detrend()andtrend()
๐ต detrend returns a detrended series using a polynomial regression (default is linear) or lowess (with the default span). For example,

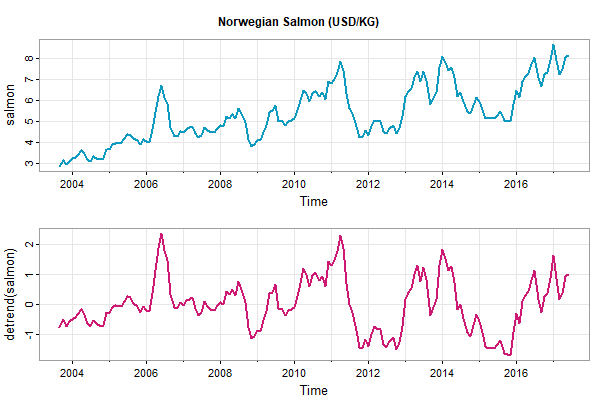

tsplot(cbind(salmon, detrend(salmon)), main='Norwegian Salmon (USD/KG)', lwd=2, col=5:6)
๐ฝ trend fits a trend (same options as detrend) and produces a graphic of the series with the trend and error bounds superimposed. The trend and error bounds are returned invisibly.

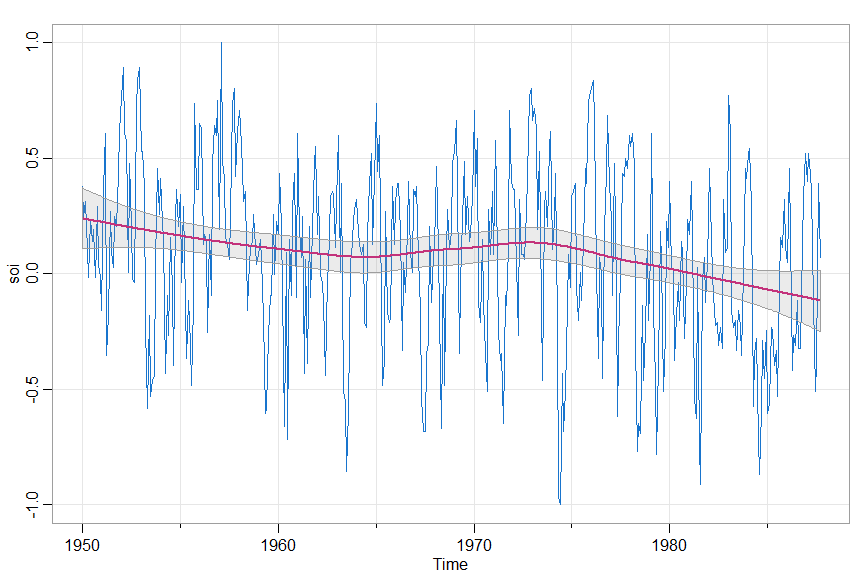

trend(soi, lowess=TRUE)
QQnorm
๐ฆ The texts have a few QQ plots and we needed them to look good because the importance of appearance extends well beyond the pleasant experiences we have when we look at attractive plots. And the code was sitting there in sarima as part of the diagnostics, so we just pulled it out.
par(mfrow=1:2)
QQnorm(varve, main='varve', gg=TRUE)
QQnorm(log(varve), main='log(varve)')
Regression t-table with VIFs
๐ญ Itโs not a graphic thing, but there was no other place to put this with ease. This is used in the 2nd edition of the Chapman Hall text. It is available in astsa version 2.3 and beyond. Itโs based on summary.lm but it prints AIC, AICc, and BIC and it can include VIFs if appropriate and it goes like this:
fit = lm( mpg~ cyl + disp + hp + drat + wt + qsec, data=mtcars)
ttable(fit, vif=TRUE)
## output
Coefficients:
Estimate SE t.value p.value VIF
(Intercept) 26.3074 14.6299 1.7982 0.0842
cyl -0.8186 0.8116 -1.0086 0.3228 9.9590
disp 0.0132 0.0120 1.0971 0.2831 10.5506 <- engine size
hp -0.0179 0.0155 -1.1564 0.2585 5.3578
drat 1.3204 1.4795 0.8925 0.3806 2.9665
wt -4.1908 1.2579 -3.3316 0.0027 7.1817
qsec 0.4015 0.5166 0.7771 0.4444 4.0397
Residual standard error: 2.557 on 25 degrees of freedom
Multiple R-squared: 0.8548, Adjusted R-squared: 0.82
F-statistic: 24.53 on 6 and 25 DF, p-value: 2.45e-09
AIC = 3.1309 AICc = 3.2768 BIC = 3.4974
mtcars is an R data set on gas consumption (mpg) and various car design aspects (the โmtโ refers to โmotor trendโ magazine). The design aspects are related [bigger engines have more horse power and weight โฆ], thus the high VIFs. Also notice that the engine size (disp) coefficient has the wrong sign because bigger engines donโt get better gas mileage. Also, nothing but weight (wt) is significant because the SEs are inflated. Howโs that for a picture?
๐ Well- since this is the part with a lot of pictures, and this regression example doesnโt come with any, we decided to put up this nice picture โฆ enjoy:
3. Correlations
๐ฝ There are four basic correlation scripts and one not so basic script in astsa. They are
acf1(),acf2(),ccf2(),acfm(), andpre.white()
-
acf1gives the sample ACF or PACF of a series. -
acf2gives both the sample ACF and PACF in a multifigure plot and both on the same scale. The graphics do not display the lag 0 ACF value because it is always 1. -
ccf2plots the sample CCFacf1andacf2also print the values, but rounded -ccf2returns the values invisibly -

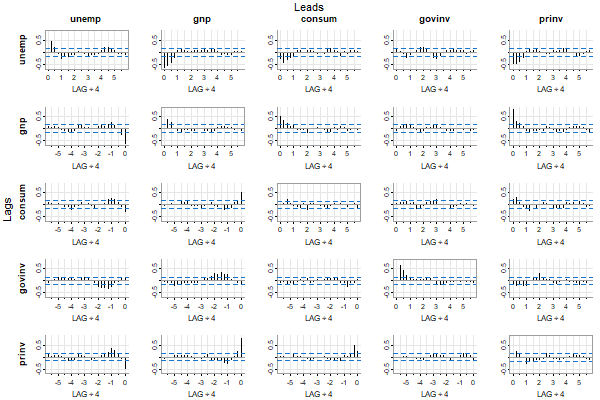

acfmis for multiple time series and it produces a grid of plots of the sample ACFs and CCFs. -
pre.white(in version 2.2) will prewhiten the first series automatically, filter the second accordingly, and perform a cross-correlation analysis.
๐ต The individual sample ACF or PACF

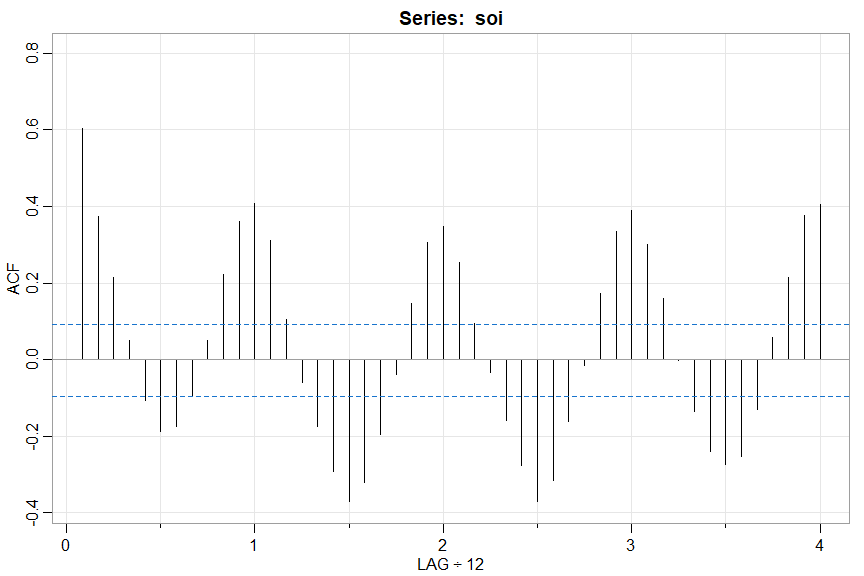

acf1(soi)
[1] 0.60 0.37 0.21 0.05 -0.11 -0.19 -0.18 -0.10 ...
๐ก Note the LAG axis label indicates the frequency of the data unless it is 1. This way, you can see that the tick at LAG 1 corresponds to 12 (months) and so on.
acf1(rec, pacf=TRUE, gg=TRUE, col=2:7, lwd=4)
[1] 0.92 -0.44 -0.05 -0.02 0.07 -0.03 -0.03 0.04 ...
๐ต Sample ACF and PACF at the same time

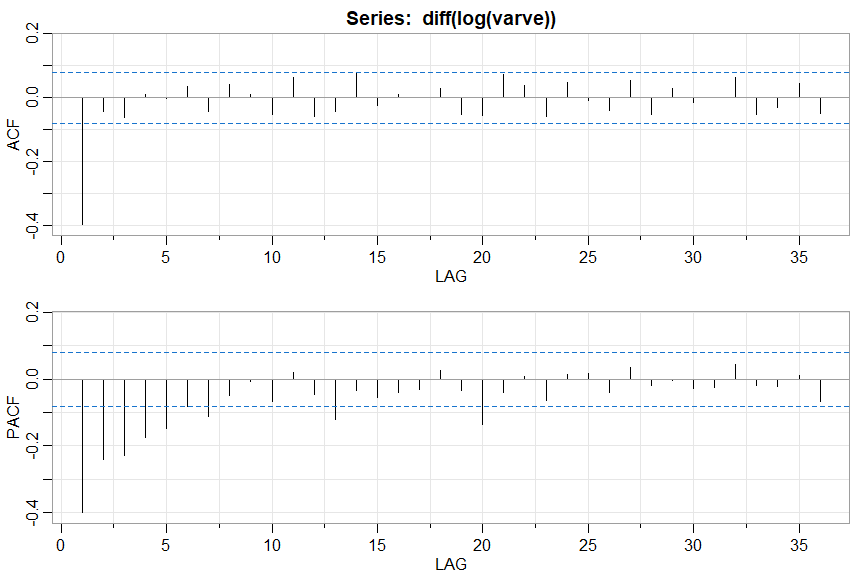

acf2(diff(log(varve)))
[,1] [,2] [,3] [,4] [,5] [,6] [,7] [,8] [,9] ...
ACF -0.4 -0.04 -0.06 0.01 0.00 0.04 -0.04 0.04 0.01 ...
PACF -0.4 -0.24 -0.23 -0.18 -0.15 -0.08 -0.11 -0.05 -0.01 ...
๐ต If you just want the values (not rounded by the script), use plot=FALSE (works for acf1 too)
acf2(diff(log(varve)), plot=FALSE)
ACF PACF
[1,] -0.3974306333 -0.397430633
[2,] -0.0444811551 -0.240404406
[3,] -0.0637310878 -0.228393075
[4,] 0.0092043800 -0.175778181
[5,] -0.0029272130 -0.148565114
[6,] 0.0353209520 -0.080800502
. . .
[33,] -0.0516758878 -0.017946464
[34,] -0.0308370865 -0.021854959
[35,] 0.0431050489 0.010867281
[36,] -0.0503025493 -0.068574763
๐ต and the sample CCF

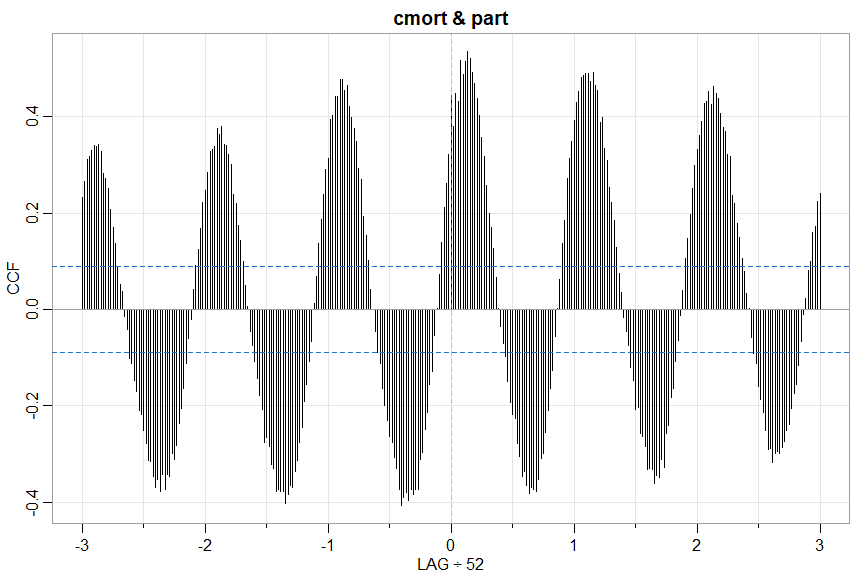

ccf2(cmort, part)
๐ซ Donโt be fooled because neither series is white noise - far from it. Prewhiten before a real cross-correlation analysis (but you know that already because youโve read it in one of the books).
๐คย Hereโs a way to do it using pre.white from astsa version 2.2 (itโs semiautomatic- the user has to decide if differencing is necessary):

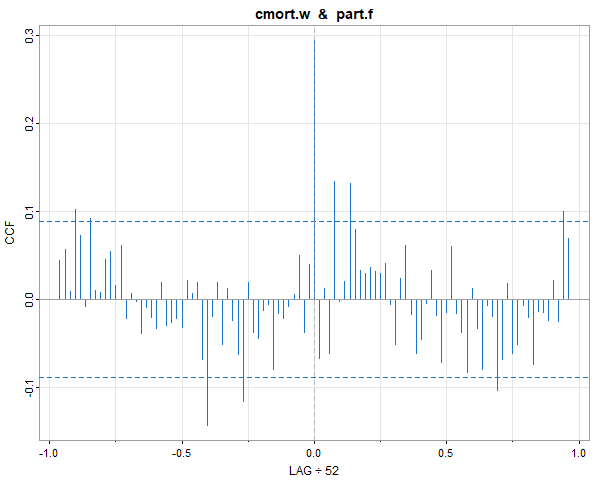

pre.white(cmort, part, diff=TRUE, col=4) # in version 2.2
# with output
cmort prewhitened using an AR p = 3
after differencing d = 1
# and ...
โฆ you get a graphic. The transformed series are returned invisibly (the .w is for whitened and the .f is for filtered):
๐ต For multiple series, you can look at all sample ACFs (highlighted a bit on the diagonal) and CCFs (off-diagonal) simultaneously:
acfm(diff(log(econ5)))
What you see are estimates of corr( xt+LAG , yt ) where xt is a column series and yt is a row series. xt leads when LAG is positive and xt lags when LAG is negative. In the figure, the top (columns) series leads and the side series (rows) lags.
All of these scripts use tsplot so there are various options for plotting. For example, you can suppress the minor ticks if itโs too much, or you can do a โgris-grisโ plot (the grammar of astsa is voodoo):
acfm(diff(log(econ5)), nxm=0) # no minor ticks on LAG axis
acfm(diff(log(econ5)), gg=TRUE, acf.highlight=FALSE) # Gris-Gris Gumbo Ya Ya
4. ARIMA
ARMA Model Evaluation
๐คช Checking the validity of an ARMA model (seasonal ok) just got easier with arma.check. Letโs look at some examples with output.
arma.check(ar=.9, ma=-.88)
# WARNING: (Possible) Parameter Redundancy
#
# It looks like that ARMA model has (approximate) common factors.
# This means that the model is (possibly) over-parameterized.
# You might want to try again.
arma.check(ar=c(1,-.9), sar=-.6, sma=-.4, S=4)
# The model is causal.
# The model is invertible.
# That's a very nice ARMA model!
arma.check(ma=1, sar=1, S=12)
# WARNING: Model Not Invertible
# WARNING: Seasonal Part Not Causal
# NOTE: Redundancy checked only for causal and invertible models

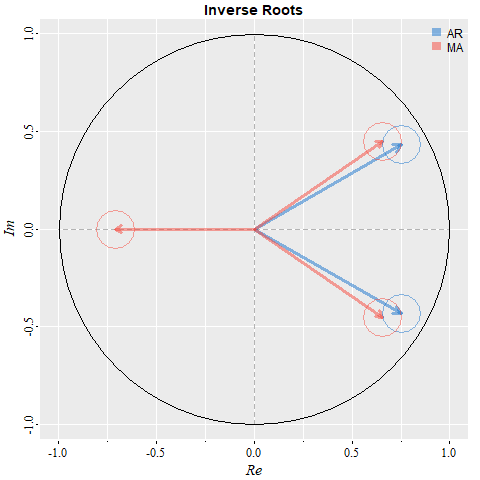

You want a picture? Ok, but any seasonal stuff is ignored to avoid a messy graphic. Itโs the complex plane with the inverse roots and the little circles have the radius of the redundancy tolerance, which may be set by the user (?arma.check has details). Also, the graphic is displayed ONLY for causal and invertible models (so all inverted roots are within the unit circle).
arma.check(ar=c(1.5,-.75), ma=c(-.6,-.3,.45), plot=TRUE, gg=TRUE)
# WARNING: (Possible) Parameter Redundancy ...
##- this is not output... but just a little note that you can't
##- always tell if a model is overparameterized just by looking
##- at the parameters (unless you have extraordinary skills)
ARIMA Simulation
๐ซ You can simulate from ARIMA models - seasonal or non-seasonal - via
sarima.sim()
The syntax are simple and weโll demonstrate with a couple of examples. There are more examples in the help file (?sarima.sim). For example, you can input your own innovations or generate non-normal innovations (the default is normal).
๐ต First an AR(2) with a mean of 50 (n=500 is the default sample size)
y = sarima.sim(ar=c(1.5,-.75)) + 50
tsplot(y, main=bquote(AR(2)~~~phi[1]==1.5~~phi[2]==-.75), col=4)
๐ต Now weโll simulate from a seasonal model, SARIMA(0,1,1)x(0,1,1)12 โ B&Jโs favorite
set.seed(101010)
x = sarima.sim(d=1, ma=-.4, D=1, sma=-.6, S=12, n=120) + 100

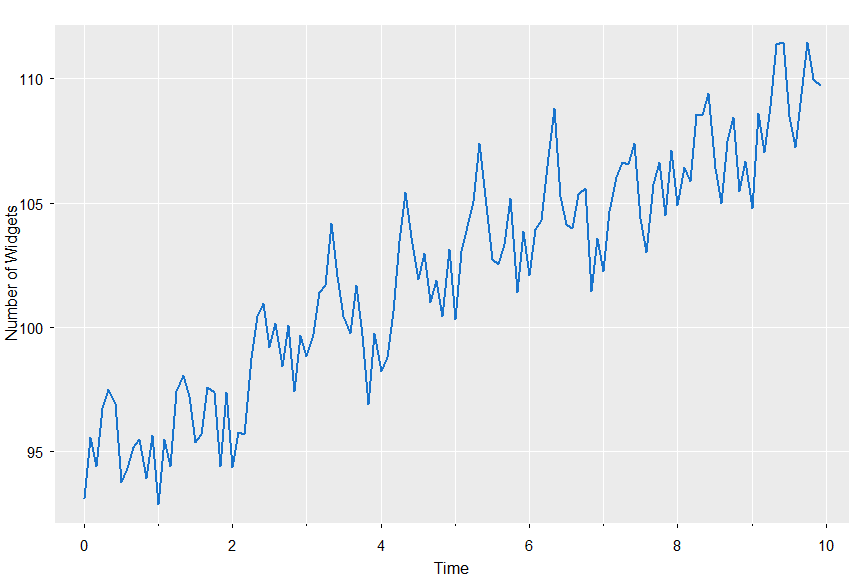

tsplot(x, col=4, lwd=2, gg=TRUE, ylab='Number of Widgets')
ARIMA Estimation
๐ Fitting ARIMA models to data is a breeze with the script
sarima()
It can do everything for you but you have to choose the model โฆ speaking of which โฆ
โ Donโt use black boxes like auto.arima from the forecast package because IT DOESNโT WORK well. If you know what you are doing, fitting an ARIMA model to linear time series data is easy.
Originally, astsa had a version of automatic fitting of models but IT DIDNโT WORK and was scrapped. The bottom line is, if you donโt know what youโre doing (aka ZERO KNOWLEDGE), why are you doing it? Maybe a better idea is to take a short course on fitting ARIMA models to data.
DONโT BELIEVE IT?? OKโฆ HERE YOU GO:
set.seed(666)
x = rnorm(1000) # WHITE NOISE
forecast::auto.arima(x) # BLACK BOX
# partial output
Series: x
ARIMA(2,0,1) with zero mean
Coefficients:
ar1 ar2 ma1
-0.9744 -0.0477 0.9509
s.e. 0.0429 0.0321 0.0294
sigma^2 estimated as 0.9657: log likelihood=-1400
AIC=2808.01 AICc=2808.05 BIC=2827.64
๐คฃ๐คฃ๐คฃย โฆ an ARMA(2,1) ?? BUT, if you KNOW what you are doing, you realize the model is basically overparametrized white noise โฆ CHECK IT OUT:
arma.check(ar=c(-.9744, -.0477), ma=.9509)
WARNING: (Possible) Parameter Redundancy
It looks like that ARMA model has (approximate) common factors.
This means that the model is (possibly) over-parameterized.
You might want to try again.
Hereโs another humorous example. Using the data cmort (cardiovascular mortality)
forecast::auto.arima(cmort)
Series: cmort
ARIMA(2,0,2)(0,1,0)[52] with drift
Coefficients:
ar1 ar2 ma1 ma2 drift
0.5826 0.0246 -0.3857 0.2479 -0.0203
s.e. 0.3623 0.3116 0.3606 0.2179 0.0148
sigma^2 = 56.94: log likelihood = -1566.28
AIC=3144.57 AICc=3144.76 BIC=3169.3
HA! Five parameters and none significant in a rather complex seasonal model. AND, it took forever to run during which my CPU fan speed ran on high. By overfitting, the standard errors are inflated.
But, if you know what youโre doing, difference to remove the trend, then itโs obviously an AR(1):
sarima(cmort, 1,1,0, no.constant=TRUE)
Coefficients:
Estimate SE t.value p.value
ar1 -0.5064 0.0383 -13.2224 0
sigma^2 estimated as 33.81057 on 506 degrees of freedom
AIC = 6.367124 AICc = 6.36714 BIC = 6.383805
Yep!! 1 parameter with a decent standard error and the residuals are perfect (white and normal).
๐ฝ Ok - back to our regularly scheduled program, sarima(). As with everything else, there are many examples on the help page (?sarima) and weโll do a couple here.
๐ต Everyone else does it, so why donโt we. Hereโs a seasonal ARIMA fit to the AirPassenger data set (for the millionth time).
sarima(log(AirPassengers),0,1,1,0,1,1,12, gg=TRUE, col=4)

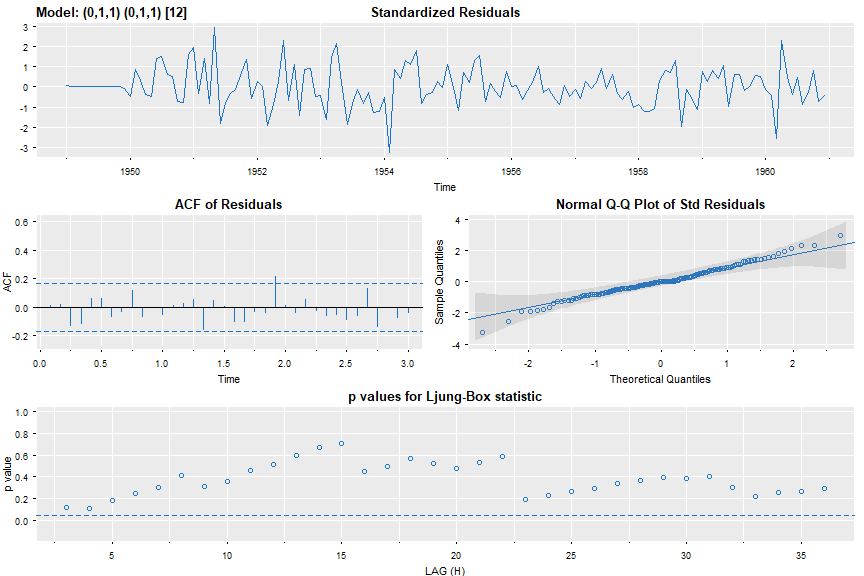

and the partial output including the residual diagnostic plot is (AIC is basically aic divided by the sample size):
Coefficients:
Estimate SE t.value p.value
ma1 -0.4018 0.0896 -4.4825 0
sma1 -0.5569 0.0731 -7.6190 0
sigma^2 estimated as 0.001348035 on 129 degrees of freedom
AIC = -3.690069 AICc = -3.689354 BIC = -3.624225
๐ต You can shut off the diagnostics using details=FALSE
sarima(log(AirPassengers),0,1,1,0,1,1,12, details=FALSE)
๐ต You can fix parameters too, for example
x = sarima.sim( ar=c(0,-.9), n=200 ) + 50
sarima(x, 2,0,0, fixed=c(0,NA,NA)) # ar1 (fixed at 0), ar2 (NA -> free), mean (NA -> free)
with output
Coefficients:
Estimate SE t.value p.value
ar2 -0.9319 0.0246 -37.9526 0
xmean 49.9527 0.0367 1361.7834 0
sigma^2 estimated as 0.9946776 on 198 degrees of freedom
AIC = 2.882823 AICc = 2.883128 BIC = 2.932298
๐ต And one more with exogenous variables - this is the regression of Lynx on Hare lagged one year with AR(2) errors.
pp = ts.intersect(Lynx, HareL1 = lag(Hare,-1), dframe=TRUE)
sarima(pp$Lynx, 2,0,0, xreg=pp$HareL1)
with partial output
Coefficients:
Estimate SE t.value p.value
ar1 1.3258 0.0732 18.1184 0.0000
ar2 -0.7143 0.0731 -9.7689 0.0000
intercept 25.1319 2.5469 9.8676 0.0000
xreg 0.0692 0.0318 2.1727 0.0326
sigma^2 estimated as 59.57091 on 86 degrees of freedom
AIC = 7.062148 AICc = 7.067377 BIC = 7.201026
๐พ And you can fit AR models using the bootstrap. Letโs fit an AR(2) to the Recruitment series.
ar.boot(rec, 2)
## output: ##
Quantiles:
ar1 ar2
1% 1.205 -0.5338
2.5% 1.234 -0.5186
5% 1.249 -0.5021
10% 1.266 -0.4912
25% 1.294 -0.4656
50% 1.326 -0.4429
75% 1.354 -0.4121
90% 1.376 -0.3874
95% 1.393 -0.3682
97.5% 1.406 -0.3589
99% 1.413 -0.3443
Mean:
ar1 ar2
1.3229 -0.4404
Bias:
ar1 ar2
[1,] -0.008703 0.004168
rMSE:
ar1 ar2
[1,] 0.04479 0.04192

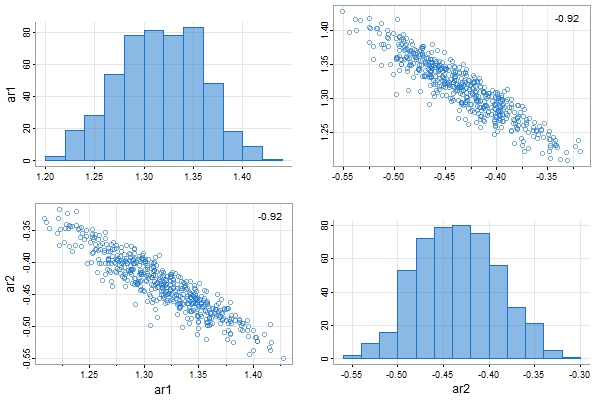

and a picture (uses tspairs for output):
Forecasting
๐น Forecasting your fitted ARIMA model is as simple as using
sarima.for()
You get a graphic showing ยฑ 1 and 2 root mean square prediction errors and the predictions and standard errors are printed. The syntax are similar to sarima but the number of periods to forecast, n.ahead, has to be specified.

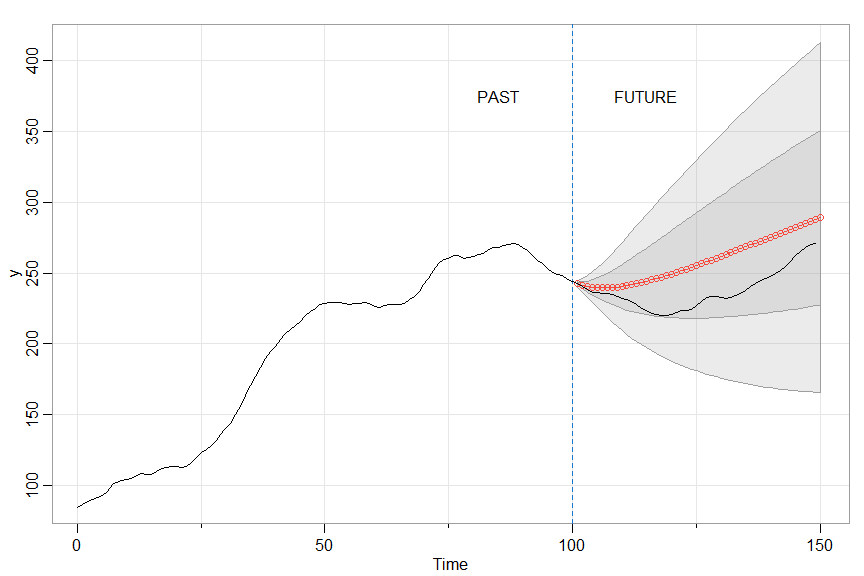

๐ต Hereโs a simple example. Weโll generate some data from an ARIMA(1,1,0), forecast some of it and then compare the forecasts to the actual values.
set.seed(12345)
x <- sarima.sim(ar=.9, d=1, n=150) # 150 observations
y <- window(x, start=1, end=100) # use first 100 to forecast
sarima.for(y, n.ahead=50, p=1, d=1, q=0, plot.all=TRUE)
text(85, 375, "PAST"); text(115, 375, "FUTURE")
abline(v=100, lty=2, col=4)
lines(x)
with partial output
$pred
Time Series:
Start = 101
End = 150
Frequency = 1
[1] 242.3821 241.3023 240.5037 239.9545 239.6264 239.4945 239.5364 ...
$se
Time Series:
Start = 101
End = 150
Frequency = 1
[1] 1.136849 2.427539 3.889295 5.459392 7.096606 8.772528 10.466926 ...
๐ต Notice the plot.all=TRUE in the sarima.for call. The default is FALSE in which case the graphic shows only the final 100 observations and the forecasts to make it easier to see whatโs going on (like in the next example).

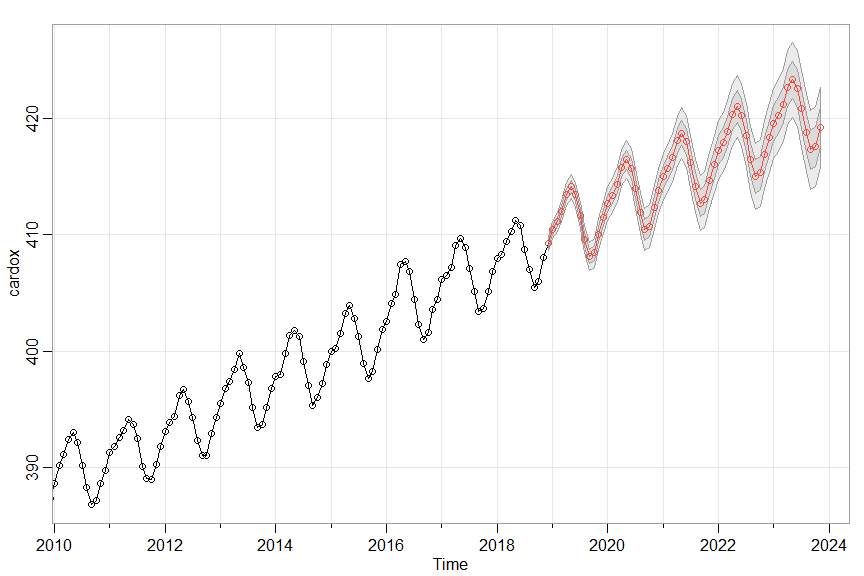

sarima.for(cardox, 60, 1,1,1, 0,1,1,12)
Missing Data
Because ARIMA models are put into state space form for estimation, missing data can be handled easily. There is a data file in astsa called ar1miss that has missing data (itโs used in Chapter 6 Problems โ youโll see the data in the forecast plot):
# as long as there aren't too many NAs, you can
# use acf2() to check an AR(1) is appropriate
acf2(ar1miss, na.action=na.contiguous)

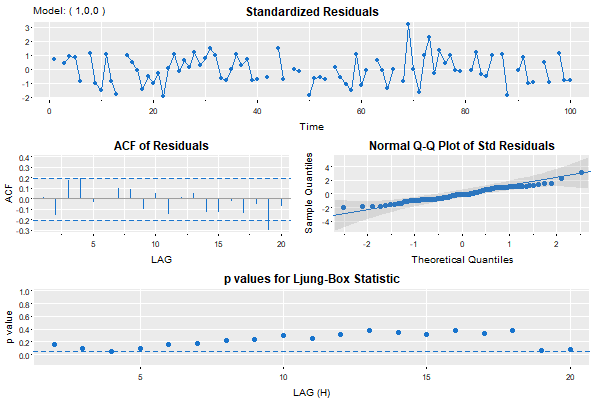

sarima(ar1miss, p=1, col=4, pch=19, gg=TRUE)
###- some output -###
# iter 2 value 0.174072
# . . .
# iter 10 value 0.136904
# converged
# <><><><><><><><><><><><><><>
#
# Coefficients:
# Estimate SE t.value p.value
# ar1 0.7684 0.0641 11.9848 0.0000
# xmean -0.2259 0.4588 -0.4923 0.6238
# sigma^2 estimated as 1.198931 on 83 degrees of freedom
# AIC = 3.182273 AICc = 3.183995 BIC = 3.268484

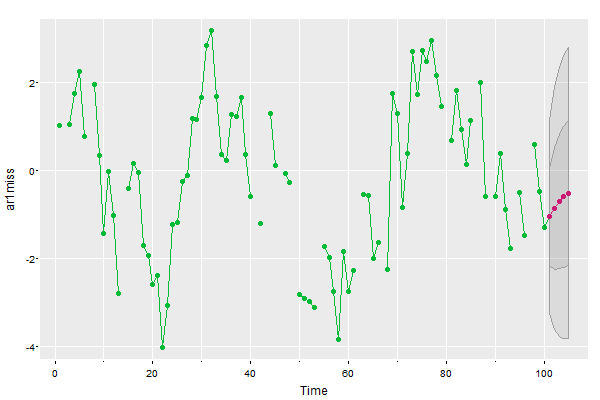

sarima.for(ar1miss, n.ahead=5, p=1, col=3, pcol=6, pch=19, gg=TRUE)
5. Spectral Analysis
๐ There are a few scripts that help with spectral analysis.
The spectral density of an ARMA model can be obtained using
arma.spec()
Nonparametric spectral analysis is done with
mvspec()
and parametric spectral analysis with
spec.ic()
ARMA Spectral Density
๐ก arma.spec tests for causality, invertibility, and common zeros. If the model is not causal or invertible an error message is given. If there are approximate common zeros, a spectrum will be displayed and a warning will be given. The frequency and spectral ordinates are returned invisibly.

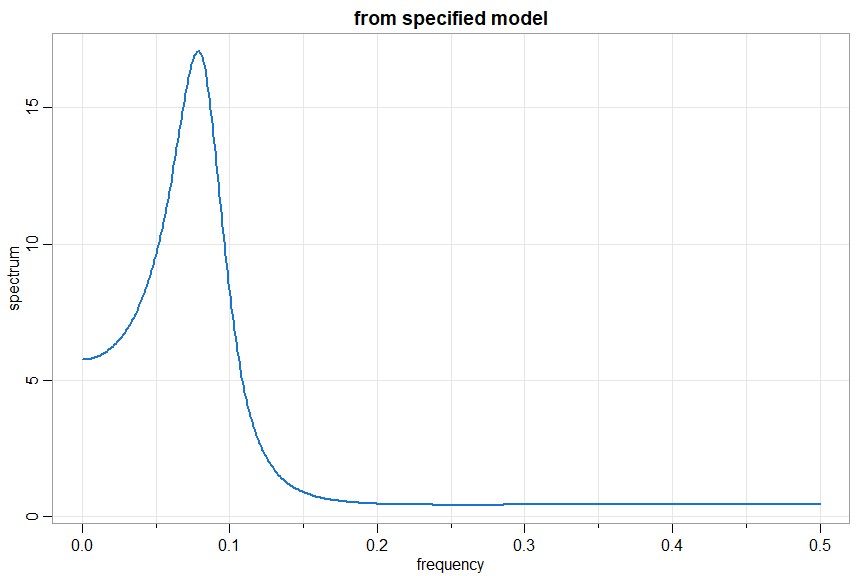

arma.spec(ar = c(1.5, -.75), ma = c(-.8,.4), col=4, lwd=2)
and if you want to do a seasonal model, you have to be a little creative; e.g., xt= .4 xt-12 + wt + .5 wt-1

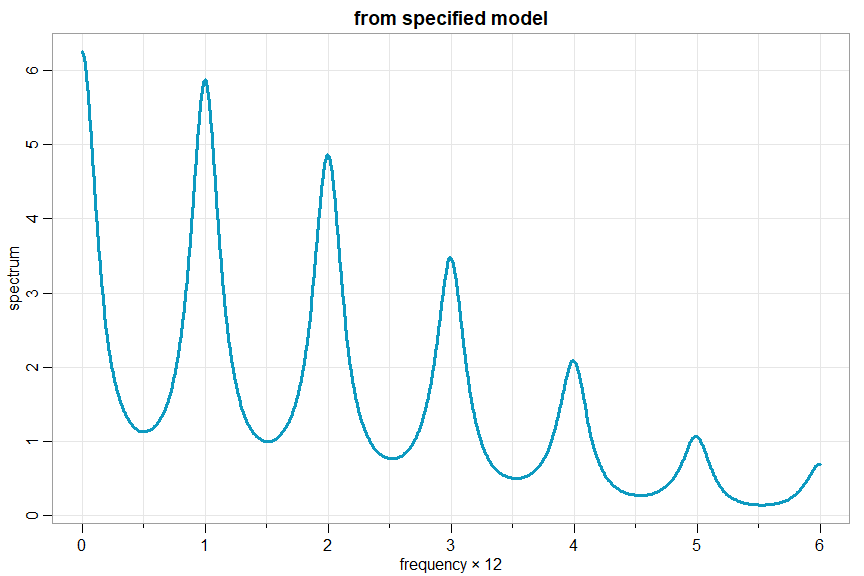

arma.spec(ar=c(rep(0,11),.4), ma=.5, col=5, lwd=3, frequency=12)
Some goofs
arma.spec(ar=10, ma=20)
WARNING: Model Not Causal
WARNING: Model Not Invertible
Error in arma.spec(ar = 10, ma = 20) : Try Again

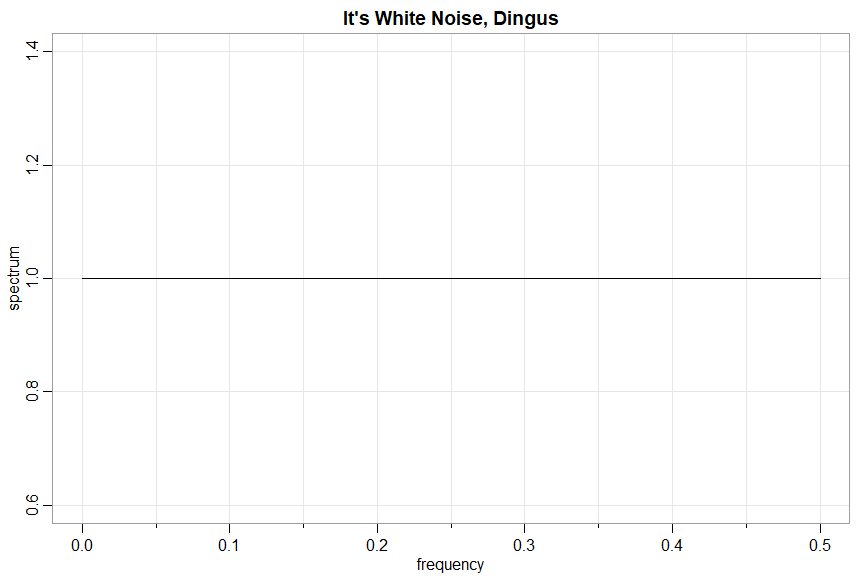

arma.spec(ar= .9, ma= -.9, main="It's White Noise, Dingus")
WARNING: Parameter Redundancy
nonparametric spectral analysis
๐น mvspec was originally just a way to get the multivariate spectral density estimate out of spec.pgram directly (without additional calculations), but then it turned into its own pretty little monster with lots of bells and whistles.

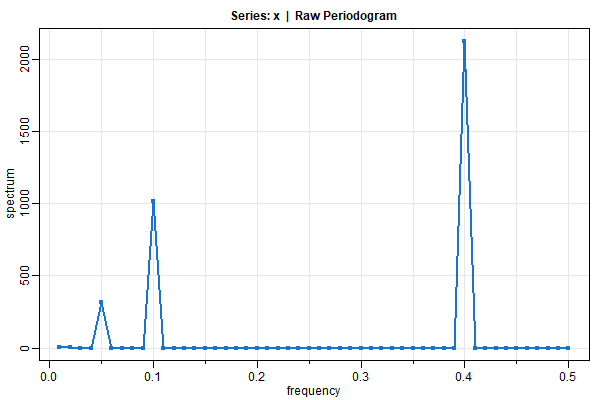

๐ต If you want the periodogram, you got it (tapering is not done automatically because youโre old enough to do it by yourself):
x1 = 2*cos(2*pi*1:100*5/100) + 3*sin(2*pi*1:100*5/100)
x2 = 4*cos(2*pi*1:100*10/100) + 5*sin(2*pi*1:100*10/100)
x3 = 6*cos(2*pi*1:100*40/100) + 7*sin(2*pi*1:100*40/100)
x = x1 + x2 + x3
tsplot(x, col=5, lwd=2, gg=TRUE)
mvspec(x, col=4, lwd=2, type='o', pch=20)

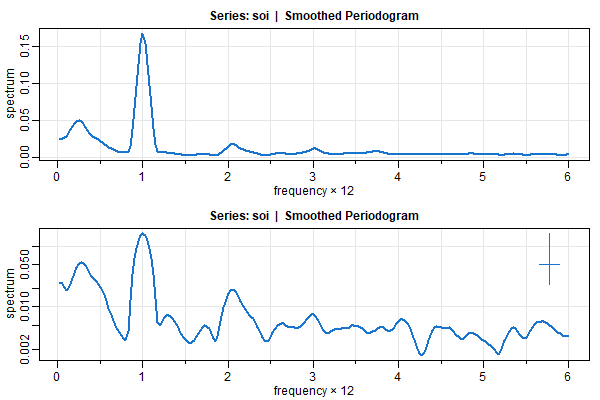

๐ต You can smooth in the usual way and get the CIs on the log-plot:
par(mfrow=c(2,1))
sois = mvspec(soi, spans=c(7,7), taper=.1, col=4, lwd=2)
##-- these get printed unless plot=FALSE--##
# Bandwidth: 0.231 | Degrees of Freedom: 8.96 | split taper: 10%
soisl = mvspec(soi, spans=c(7,7), taper=.5, col=4, lwd=2, log='y')
# ditto
๐ต and you can easily locate the peaks
sois$details[1:45,]
frequency period spectrum
[8,] 0.200 5.0000 0.0461
[9,] 0.225 4.4444 0.0489
[10,] 0.250 4.0000 0.0502 <- here
[11,] 0.275 3.6364 0.0490
[12,] 0.300 3.3333 0.0451
[13,] 0.325 3.0769 0.0403
[14,] 0.350 2.8571 0.0361
[38,] 0.950 1.0526 0.1253
[39,] 0.975 1.0256 0.1537
[40,] 1.000 1.0000 0.1675 <- here
[41,] 1.025 0.9756 0.1538
[42,] 1.050 0.9524 0.1259
[43,] 1.075 0.9302 0.0972

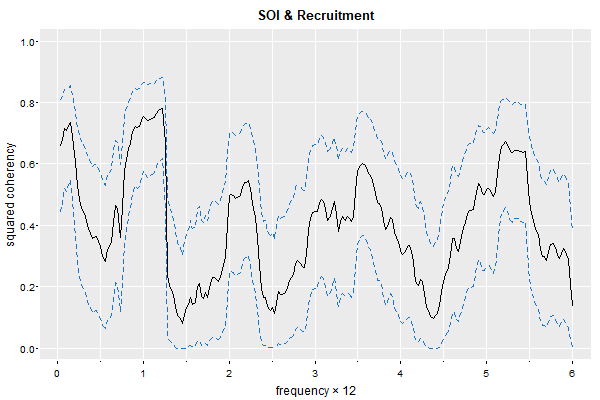

๐ต and cross-spectra
mvspec(cbind(soi,rec), spans=20, plot.type="coh", taper=.1, ci.lty=2, gg=TRUE, main="SOI & Recruitment")
# Bandwidth: 0.513 | Degrees of Freedom: 34.68 | split taper: 10%
parametric spectral analysis
๐ก spec.ic (in astsa) is similar to spec.ar (in stats) but the option to use BIC instead of AIC is available. Also, you can use the script to compare AIC and BIC for AR fits to the data.
๐ต Based on BIC after detrending (default is using AIC with BIC=FALSE)

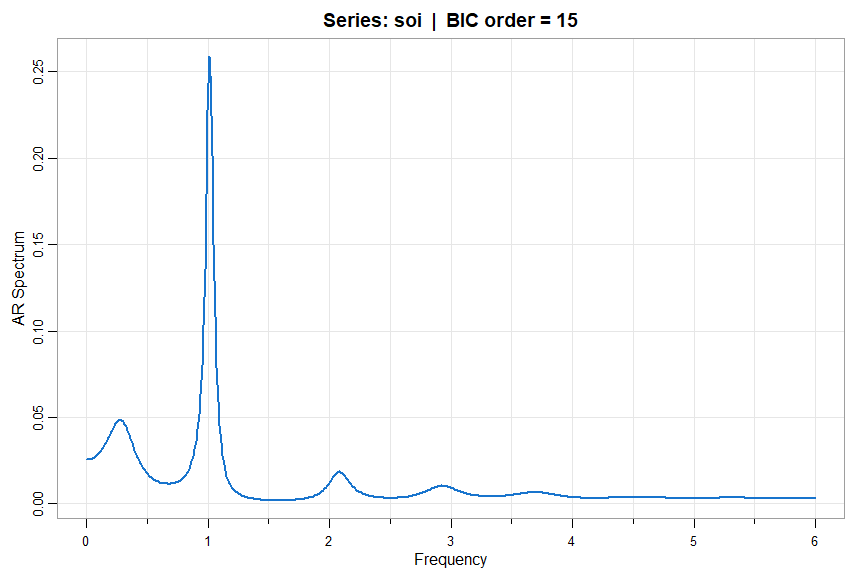

u <- spec.ic(soi, BIC=TRUE, detrend=TRUE, col=4, lwd=2)
๐ต Print and plot AIC and BIC (both pick order 15):
u[[1]] # notice the values are adjusted by the min
ORDER AIC BIC
[1,] 0 272.6937023 210.955320
[2,] 1 82.1484043 24.525915
[3,] 2 84.1441892 30.637592
[4,] 3 85.5926277 36.201922
[5,] 4 80.4715619 35.196749
[6,] 5 70.7822012 29.623280
[7,] 6 69.5898661 32.546837
[8,] 7 71.5718647 38.644728
[9,] 8 71.4320021 42.620757
[10,] 9 63.2815353 38.586183
[11,] 10 49.9872355 29.407775
[12,] 11 40.7220194 24.258451
[13,] 12 41.0928139 28.745138
[14,] 13 37.0833413 28.851557
[15,] 14 8.7779160 4.662024
[16,] 15 0.0000000 0.000000
[17,] 16 0.4321663 4.548058
[18,] 17 0.8834736 9.115258
[19,] 18 0.9605224 13.308199
[20,] 19 2.9348253 19.398394
[21,] 20 4.7475516 25.327012
[22,] 21 6.7012637 31.396616
[23,] 22 7.1553956 35.966641
[24,] 23 4.6428297 37.569967
[25,] 24 5.8610042 42.904033
[26,] 25 6.5000325 47.658954
[27,] 26 2.8918549 48.166668
[28,] 27 4.2581518 53.648857
[29,] 28 5.5960927 59.102690
[30,] 29 6.3765400 63.999030
[31,] 30 2.6978096 64.436191

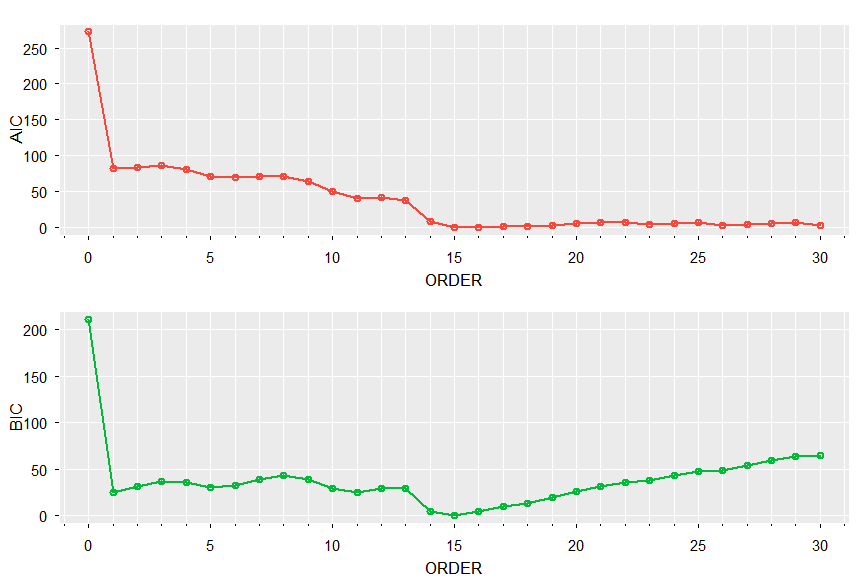

tsplot(0:30, u[[1]][,2:3], type='o', col=2:3, xlab='ORDER', nxm=5, lwd=2, gg=TRUE)
more multivariate spectra

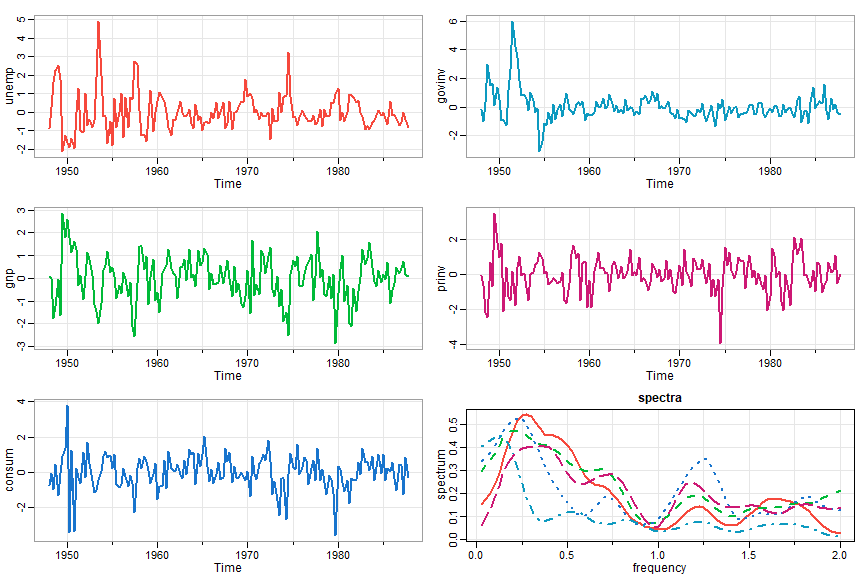

๐ต The data frame econ5 was used to consider the effect of quarterly GNP, consumption, and government and private investment on U.S. unemployment. In this case, mvspec will plot the individual spectra by default and you can extract the spectral matrices as fxx, an array of dimensions dim = c(p,p,nfreq) as well as plot coherencies and phases. Here, p = 5:
gr = diff(log(econ5))
gr = scale(gr) # for comparable spectra
tsplot(gr, ncol=2, col=2:6, lwd=2, byrow=FALSE, reset=FALSE)
gr.spec = mvspec(gr, spans=c(7,7), detrend=FALSE, taper=.25, col=2:6, lwd=2, main='spectra')
round(gr.spec$fxx, 2)
And a sample of the output of the last line giving the matrix estimate. The numbers at top refer to frequency ordinate:
, , 49
[,1] [,2] [,3] [,4] [,5]
[1,] 0.097+0.000i -0.048+0.042i -0.053+0.080i 0.032-0.037i -0.027+0.033i
[2,] -0.048-0.042i 0.129+0.000i 0.100-0.039i -0.052+0.012i 0.111+0.000i
[3,] -0.053-0.080i 0.100+0.039i 0.232+0.000i -0.041+0.001i 0.023+0.079i
[4,] 0.032+0.037i -0.052-0.012i -0.041-0.001i 0.051+0.000i -0.049+0.008i
[5,] -0.027-0.033i 0.111+0.000i 0.023-0.079i -0.049-0.008i 0.157+0.000i
, , 50
[,1] [,2] [,3] [,4] [,5]
[1,] 0.093+0.000i -0.054+0.045i -0.053+0.081i 0.030-0.034i -0.033+0.035i
[2,] -0.054-0.045i 0.124+0.000i 0.112-0.041i -0.048+0.010i 0.100+0.008i
[3,] -0.053-0.081i 0.112+0.041i 0.240+0.000i -0.034+0.009i 0.027+0.085i
[4,] 0.030+0.034i -0.048-0.010i -0.034-0.009i 0.050+0.000i -0.043+0.015i
[5,] -0.033-0.035i 0.100-0.008i 0.027-0.085i -0.043-0.015i 0.146+0.000i
6. Detecting Structural Breaks
autoSpec
โ Detection of Narrowband Frequency Changes in Time Series - the paper is here
๐ก The basic idea is to fit local spectra by detecting slight changes in frequency. Section 2 of the paper on Resolution provides the motivation for the technique. If you havenโt guessed it already, the script is called
autoSpec()
and most of the inputs have default settings.
๐ Hereโs an example where other techniques tend to fail (try it with autoParm below). A narrowband signal is modulated until halfway through.
Part of the input are min.freq and max.freq that specify the frequency range (min, max) over which to calculate the Whittle likelihood; the default is (0, ½), which is the entire frequency range.
# simulate data
set.seed(90210)
num = 500
t = 1:num
w = 2*pi/25
d = 2*pi/150
x1 = 2*cos(w*t)*cos(d*t) + rnorm(num)
x2 = cos(w*t) + rnorm(num)
x = c(x1, x2)
# periodogram (not shown) - all action below .1
mvspec(x)
autoSpec(x, max.freq=.1)
# returned breakpoints include the endpoints
# $breakpoints
# [1] 1 483 1000
#
# $number_of_segments
# [1] 2
#
# $segment_kernel_orders_m
# [1] 2 1

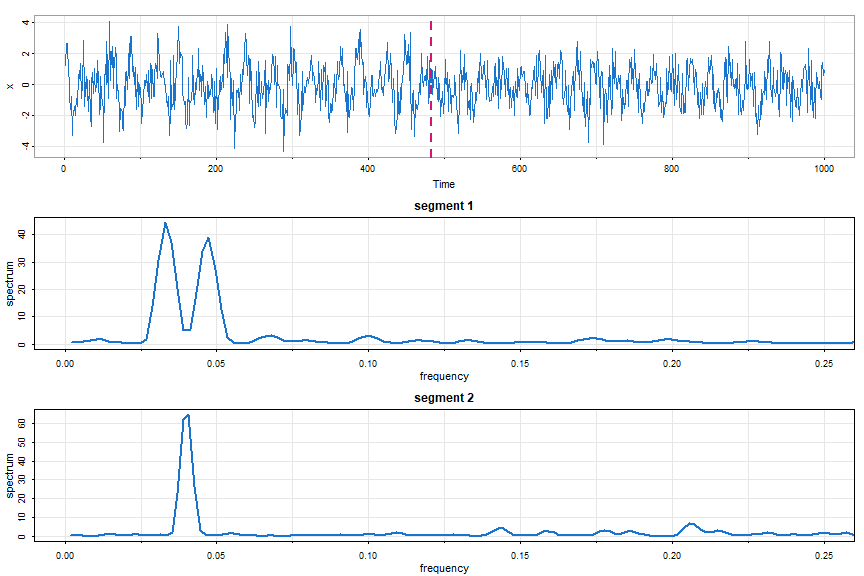

# plot everything
par(mfrow=c(3,1))
tsplot(x, col=4)
abline(v=483, col=6, lty=2, lwd=2)
mvspec(x[1:482], kernel=bart(2), taper=.5, main='segment 1', col=4, lwd=2, xlim=c(0,.25))
mvspec(x[483:1000], kernel=bart(1), taper=.5, main='segment 2', col=4, lwd=2, xlim=c(0,.25))
autoParm
โ Structural Break Estimation for Nonstationary Time Series Models. - the paper is here
๐ก This is similar to autoSpec but fits local AR models. If you havenโt guessed it already, the script is called
autoParm()
and most of the inputs have default settings. Hereโs an example.
##-- simulation - two AR(2)s that may look similar
x1 = sarima.sim(ar=c(1.69, -.81), n=500)
x2 = sarima.sim(ar=c(1.32, -.81), n=500)
x = c(x1, x2)
##-- but if you look at the data they're very different
##-- in fact, x2 is twice as fast as x1
tsplot(x)
##-- run procedure
autoParm(x)
# output
# returned breakpoints include the endpoints
# $breakpoints
# [1] 1 507 1000
#
# $number_of_segments
# [1] 2
#
# $segment_AR_orders
# [1] 2 2
##-- now fit AR(2)s to each piece
ar(x[1:506], order=2, aic=FALSE)
# Coefficients:
# 1 2
# 1.6786 -0.8085
# Order selected 2 sigma^2 estimated as 1.053
#
ar(x[507:1000], order=2, aic=FALSE)
# Coefficients:
# 1 2
# 1.2883 -0.7635
# Order selected 2 sigma^2 estimate as 1.144
7. Linearity Test
๐ก Linear time series models are built on the linear process, where it is assumed that a univariate series Xt can be generated as
| โโ Xt = ฮผ + โ ฯj Zt - j where โ | ฯj | < โ |
where Zt is a sequence of i.i.d. random variables with at least finite third moments. This assumption can be tested using the bispectrum, which is constant under the null hypothesis that the data are from a linear process with i.i.d. innovations. The workhorse here is
test.linear()
and more details can be found in its help file (?test.linear). Chi-squared test statistics are formed in blocks to measure departures from the null hypothesis and the corresponding p-values are displayed in a graphic and returned invisibly -
details in this paper.
๐ต First an example of a linear process where the graphic suggests a constant bispectrum.

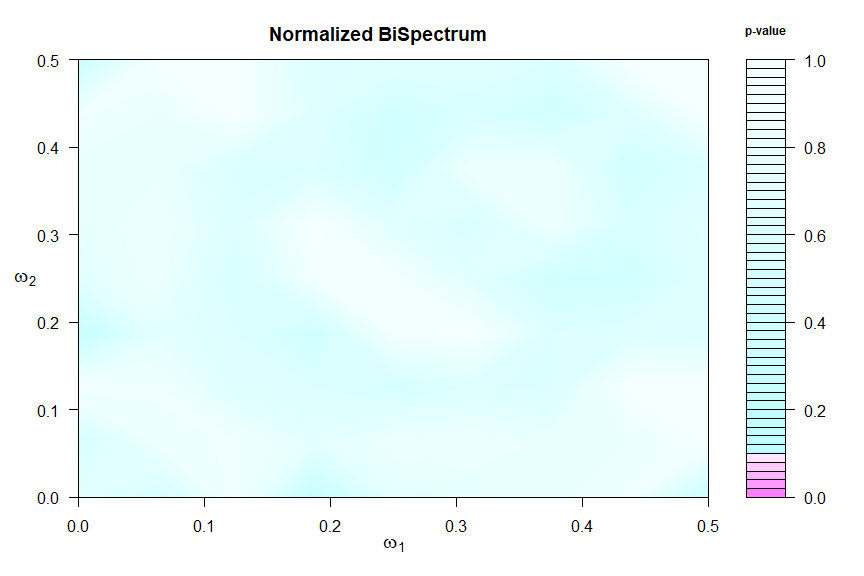

test.linear(soi)
๐ต Notoriously nonlinear processes are financial series, for example the returns of the New York Stock Exchange (NYSE) from February 2, 1984 to December 31, 1991
# other packages have an 'nyse' data so to be safe we're setting
nyse = astsa::nyse # just to be sure
test.linear(nyse)
tsplot(nyse, col=4)
8. State Space Models
For Kalman filtering and smoothing the scripts are
KfilterandKsmooth
The default model (for both) is
โฆ Version 1:
โ โ xt = ฮฆ xt-1 + ฮฅ ut + sQ wt ย and ย yt = At xt + ฮ ut + sR vt,
where wt ~ iid Np(0, I) โฅ vt ~ iid Nq(0, I) โฅ x0 ~ Np(ฮผ0, ฮฃ0). In this case Q = sQ sQโ and R = sR sRโ. If itโs easier to model by specifying Q and/or R, you can use sQ = t(chol(Q)) or sQ = Q %^% .5 and so on.
There is an option to select the correlated errors version:
โฆ Version 2:
โ โ xt+1 = ฮฆ xt + ฮฅ ut+1 + sQ wt, ย and ย yt = At xt + ฮ ut + sR vt,
where cov(ws, vt) = S ฮดst and so on.
โ See the help files ?Kfilter and ?Ksmooth to see how the models are specified, but the calls look like
โ Kfilter(y, A, mu0, Sigma0, Phi, sQ, sR, Ups = NULL, Gam = NULL, input = NULL, S = NULL, version = 1).
The โalways neededโ stuff comes first, and the โsometimes neededโ comes last. And again, if you want to model via Q and R, just use sQ = Q %^%.5 and sR = R %^%.5 [which works in the psd case] or sQ = t(chol(Q)) and sR = t(chol(R)) [which needs pd].
๐ต Weโll do the bootstrap example from the text, which used to take a long timeโฆ but now is fast.
# Example 6.13
tol = .0001 # determines convergence of optimizer
nboot = 500 # number of bootstrap replicates
# set up
y = window(qinfl, c(1953,1), c(1965,2)) # quarterly inflation
z = window(qintr, c(1953,1), c(1965,2)) # interest
num = length(y)
A = array(z, dim=c(1,1,num))
input = matrix(1,num,1)
# Function to Calculate Likelihood
Linn = function(para, y.data){ # pass parameters and data
phi = para[1]; alpha = para[2]
b = para[3]; Ups = (1-phi)*b
sQ = para[4]; sR = para[5]
kf = Kfilter(y.data, A, mu0, Sigma0, phi, sQ, sR, Ups, Gam=alpha, input) # version 1 by default
return(kf$like)
}
# Parameter ML Estimation
mu0 = 1
Sigma0 = .01
init.par = c(phi=.84, alpha=-.77, b=.85, sQ=.12, sR=1.1) # initial values
est = optim(init.par, Linn, NULL, y.data=y, method="BFGS", hessian=TRUE,
control=list(trace=1, REPORT=1, reltol=tol))
SE = sqrt(diag(solve(est$hessian)))
## results
phi = est$par[1]; alpha = est$par[2]
b = est$par[3]; Ups = (1-phi)*b
sQ = est$par[4]; sR = est$par[5]
round(cbind(estimate=est$par, SE), 3)
# output
### estimate SE
### phi 0.866 0.223
### alpha -0.686 0.486
### b 0.788 0.226
### sQ 0.115 0.107
### sR 1.135 0.147
# BEGIN BOOTSTRAP
# Run the filter at the estimates
kf = Kfilter(y, A, mu0, Sigma0, phi, sQ, sR, Ups, Gam=alpha, input)
# Pull out necessary values from the filter and initialize
xp = kf$Xp
Pp = kf$Pp
innov = kf$innov
sig = kf$sig
e = innov/sqrt(sig)
e.star = e # initialize values
y.star = y
xp.star = xp
k = 4:50 # hold first 3 observations fixed
para.star = matrix(0, nboot, 5) # to store estimates
init.par = c(.84, -.77, .85, .12, 1.1)
pb = txtProgressBar(min = 0, max = nboot, initial = 0, style=3) # progress bar
for (i in 1:nboot){
setTxtProgressBar(pb,i)
e.star[k] = sample(e[k], replace=TRUE)
for (j in k){
K = (phi*Pp[j]*z[j])/sig[j]
xp.star[j] = phi*xp.star[j-1] + Ups + K*sqrt(sig[j])*e.star[j]
}
y.star[k] = z[k]*xp.star[k] + alpha + sqrt(sig[k])*e.star[k]
est.star = optim(init.par, Linn, NULL, y.data=y.star, method='BFGS', control=list(reltol=tol))
para.star[i,] = cbind(est.star$par[1], est.star$par[2], est.star$par[3],
abs(est.star$par[4]), abs(est.star$par[5]))
}
close(pb)
# Some summary statistics
# SEs from the bootstrap
rmse = rep(NA,5)
for(i in 1:5){rmse[i]=sqrt(sum((para.star[,i]-est$par[i])^2)/nboot)
cat(i, rmse[i],"\n")
}
# output (compare these to the SEs above)
# 1 0.401331
# 2 0.5590043
# 3 0.3346493
# 4 0.1793103
# 5 0.2836505

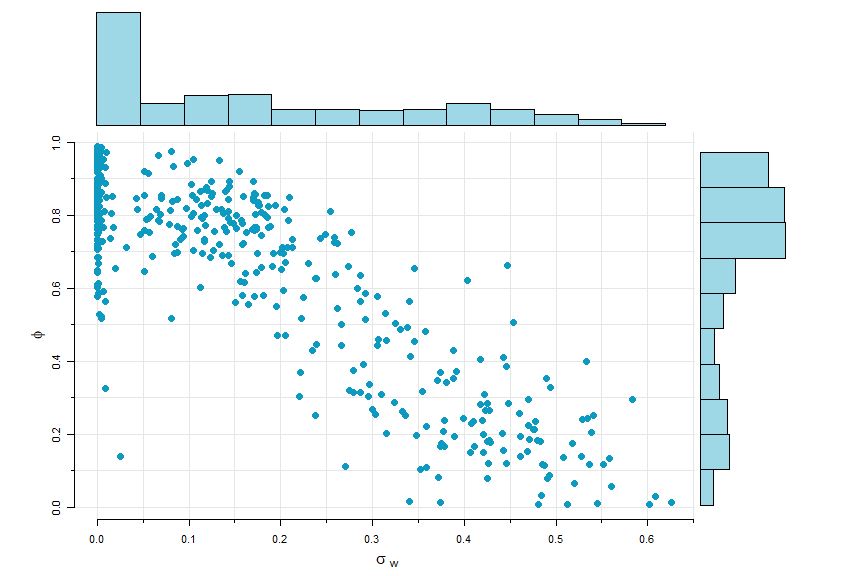

# Plot phi and sigw (scatter.hist in astsa)
phi = para.star[,1]
sigw = abs(para.star[,4])
phi = ifelse(phi<0, NA, phi) # any phi < 0 not plotted
scatter.hist(sigw, phi, ylab=expression(phi), xlab=expression(sigma[~w]),
hist.col=astsa.col(5,.4), pt.col=5, pt.size=1.5)
๐ต The smoother is similar. Hereโs a simple example with no output shown.
# generate some data
set.seed(1)
sQ = 1; sR = 3; n = 100
mu0 = 0; Sigma0 = 10; x0 = rnorm(1,mu0,Sigma0)
w = rnorm(n); v = rnorm(n)
x = c(x0 + sQ*w[1]); y = c(x[1] + sR*v[1]) # initialize
for (t in 2:n){
x[t] = x[t-1] + sQ*w[t]
y[t] = x[t] + sR*v[t]
}
# let's make y a time series starting in the year 3000 just to mess with its mind
y = ts(y, start=3000)
# run and plot the filter
run = Ksmooth(y, A=1, mu0, Sigma0, Phi=1, sQ, sR)
# the smoother comes back as an array, so you have to un-array (drop) it
tsplot(cbind(y, drop(run$Xs)), spaghetti=TRUE, type='o', col=c(4,6), pch=c(1,NA))
legend('topleft', legend=c("y(t)","Xs(t)"), lty=1, col=c(4,6), bty="n", pch=c(1,NA))
Beginners Paradise
๐ก There is a basic linear state space model script in astsa :
ssm()
๐ต For a univariate model (both $p=q=1$), write the states as xt and the observations as yt.
โโxt = ฮฑ + ฯ xt-1 + wt ย ย and ย ย yt = A xt + vt
where wt ~ iid N(0, ฯw) โฅ vt ~ iid N(0, ฯv) โฅ x0 ~ N(ฮผ0, ฯ0)
๐ต Weโll fit the model to one of the global temperature series. To use the script, you have to give initial estimates and then the script fits the model via MLE. The initial values of ฮผ0 and ฯ0 are chosen automatically. In this example, we hold ฯ fixed at 1.
u = ssm(gtemp_land, A=1, phi=1, alpha=.01, sigw=.01, sigv=.1, fixphi=TRUE)
(remove the fixphi=TRUE to estimate ฯ) with output:
estimate SE
alpha 0.01428210 0.005138887
sigw 0.06643393 0.013368981
sigv 0.29494720 0.017370440

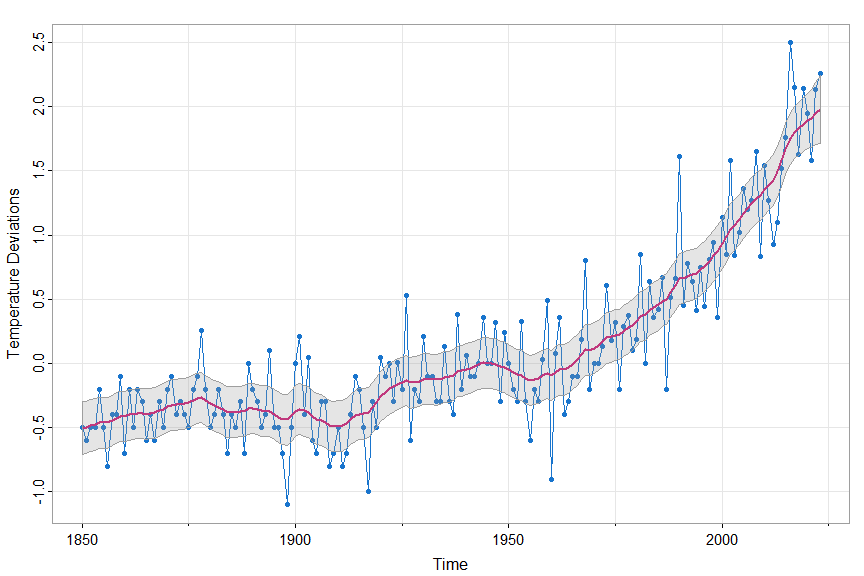

and a nice picture - the data [yt], the smoothers [ E(xt | y1 ,โฆ, yn) ] and ยฑ2 root MSPEs. The smoothers are
in Xs and the MSPEs are in Ps:
tsplot(gtemp_land, col=4, type="o", pch=20, ylab="Temperature Deviations")
lines(u$Xs, col=6, lwd=2)
xx = c(time(u$Xs), rev(time(u$Xs)))
yy = c(u$Xs-2*sqrt(u$Ps), rev(u$Xs+2*sqrt(u$Ps)))
polygon(xx, yy, border=8, col=gray(.6, alpha=.25) )
๐ต The output of ssm() gives the predictors [Xp] and MSPE [Pp], the
filtered values [Xf and Pf] and the smoothers [Xs and Ps]:
str(u)
List of 6
$ Xp: Time-Series [1:174] from 1850 to 2023: -0.446 -0.445 -0.467 -0.46 -0.454 ...
$ Pp: Time-Series [1:174] from 1850 to 2023: 0.0292 0.0263 0.0246 0.0236 0.023 ...
$ Xf: Time-Series [1:174] from 1850 to 2023: -0.459 -0.481 -0.474 -0.468 -0.401 ...
$ Pf: Time-Series [1:174] from 1850 to 2023: 0.0218 0.0202 0.0192 0.0186 0.0182 ...
$ Xs: Time-Series [1:174] from 1850 to 2023: -0.503 -0.497 -0.487 -0.475 -0.463 ...
$ Ps: Time-Series [1:174] from 1850 to 2023: 0.01094 0.01051 0.01023 0.01005 0.00994 ...
9. EM Algorithm and Missing Data
๐ก To use the EM algorithm presented in Shumway & Stoffer (1982) and discussed in detail in Chapter 6 of the text Time Series Analysis and Its Applications: With R Examples, use the script
EM()
The call looks like
โ EM(y, A, mu0, Sigma0, Phi, Q, R, Ups=NULL, Gam=NULL, input=NULL, max.iter=100, tol=1e-04)
and sort of mimics the Kfilter and Ksmooth calls but accepts Q and R directly. However, the code only works with the uncorrelated noise script (version 1).
๐ต Hereโs a simple univariate example. With y = gtemp_land, the model weโll fit is
โโxt = ฮฑ + ฯ xt-1 + wt ย ย and ย ย yt = A xt + vt
where wt ~ iid N(0, ฯw) โฅ vt ~ iid N(0, ฯv) โฅ x0 ~ N(ฮผ0, ฯ0)
y = gtemp_land
A = 1 # if A is constant, enter it that way
Ups = 0.01 # alpha
Phi = 1
Q = 0.001 # notice you input Q
R = 0.01 # and R now
mu0 = mean(y[1:5]) # this is how ssm() chooses
Sigma0 = var(jitter(y[1:5])) # initial state values
input = rep(1, length(y))
( em = EM(y, A, mu0, Sigma0, Phi, Q, R, Ups, Gam=NULL, input) )
with partial output
$Phi
[1] 1.024571
$Q
[,1]
[1,] 0.001541975
$R
[,1]
[1,] 0.0941836
$Ups
[1] 0.01301747
$Gam
NULL
$mu0
[,1]
[1,] -0.5036954
$Sigma0
[,1]
[1,] 0.001961116
$like
[1] 328.3526 -110.5628 -112.3838 -112.3874
$niter
[1] 4
$cvg
[1] 3.194832e-05
๐ต Missing data can be entered as NA or zero (0) in the data (y) and measurement matrices (At). Next, weโll do a missing data example, blood, which contains the daily blood work of a patient for 91 days and where there are many missing observations after the first month.

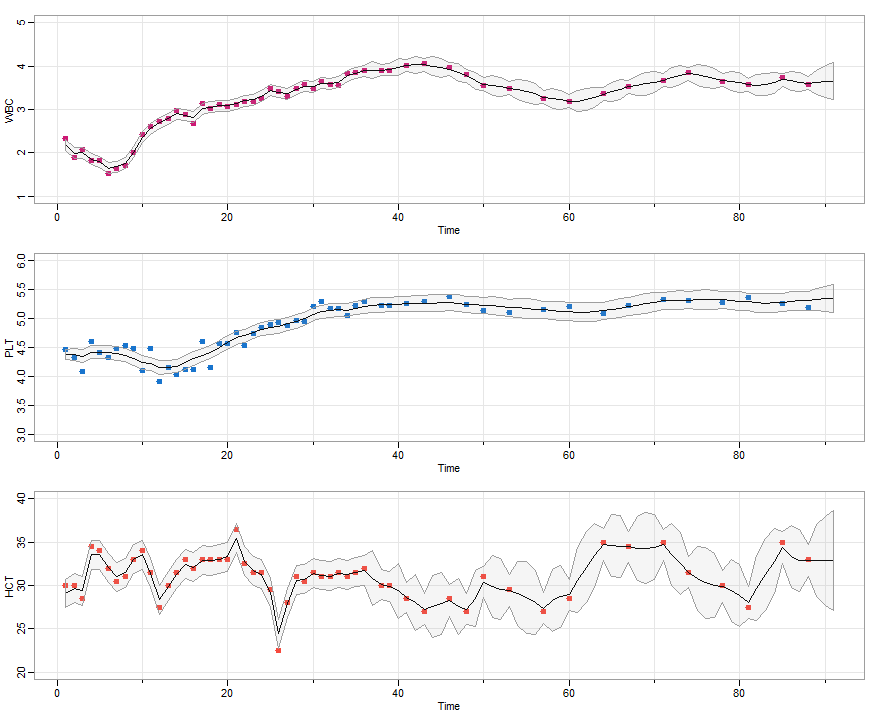

tsplot(blood, type='o', col=c(6,4,2), lwd=2, pch=19, cex=1)
- First the set up.
โโxt = ฮฆ xt-1 + wt ย ย and ย ย yt = At xt + vt
where At is 3x3 identity when observed, and 0 matrix when missing. The errors are wt ~ iid N3(0, Q) โฅ vt ~ iid N3(0, V) โฅ x0 ~ N3(ฮผ0, ฮฃ0).
y = blood # missing values are NA
num = nrow(y)
A = array(0, dim=c(3,3,num)) # creates num 3x3 zero matrices
for(k in 1:num) if (!is.na(y[k,1])) A[,,k]= diag(1,3) # measurement matrices for observed
- Next, run the EM Algorithm by specifying model parameters. You can specify the max number of iterations and relative tolerance, too.
# Initial values
mu0 = matrix(0,3,1)
Sigma0 = diag(c(.1,.1,1) ,3)
Phi = diag(1, 3)
Q = diag(c(.01,.01,1), 3)
R = diag(c(.01,.01,1), 3)
# Run EM
(em = EM(y, A, mu0, Sigma0, Phi, Q, R))
The (partial) output is (NOTE: the output used to start at iteration 1, but after version 2.4 was published, we decided to start at 0 because the first evaluation of the likelihood is at the initial values โฆ right now, itโs only this way on GitHub)
iteration -loglikelihood
0 68.28328
1 -183.9361
2 -194.2051
3 -197.5444
4 -199.7442
5 -201.6431
. .
60 -233.2501
61 -233.2837
62 -233.3121
63 -233.3357
64 -233.3545
# estimates below
$Phi
[,1] [,2] [,3]
[1,] 0.98395673 -0.03975976 0.008688178
[2,] 0.05726606 0.92656284 0.006023044
[3,] -1.26586175 1.96500888 0.820475630
$Q
[,1] [,2] [,3]
[1,] 0.013786286 -0.001974193 0.01147321
[2,] -0.001974193 0.002796296 0.02685780
[3,] 0.011473214 0.026857800 3.33355946
$R
[,1] [,2] [,3]
[1,] 0.00694027 0.00000000 0.0000000
[2,] 0.00000000 0.01707764 0.0000000
[3,] 0.00000000 0.00000000 0.9389751
$mu0
[,1]
[1,] 2.137368
[2,] 4.417385
[3,] 25.815731
$Sigma0
[,1] [,2] [,3]
[1,] 2.910997e-04 -4.161189e-05 0.0002346656
[2,] -4.161189e-05 1.923713e-04 -0.0002854434
[3,] 2.346656e-04 -2.854434e-04 0.1052641500
$like
[1] 68.28328 -183.93608 -194.20508 -197.54440 -199.74425 -201.64313 -203.42258 -205.12530
[9] -206.75951 -208.32511 -209.82091 -211.24639 -212.60202 -213.88906 -215.10935 -216.26514
[17] -217.35887 -218.39311 -219.37048 -220.29354 -221.16485 -221.98686 -222.76196 -223.49243
[25] -224.18049 -224.82824 -225.43771 -226.01085 -226.54953 -227.05552 -227.53054 -227.97621
[33] -228.39410 -228.78569 -229.15242 -229.49563 -229.81661 -230.11659 -230.39674 -230.65816
[41] -230.90189 -231.12893 -231.34021 -231.53662 -231.71899 -231.88811 -232.04473 -232.18954
[49] -232.32321 -232.44634 -232.55954 -232.66333 -232.75824 -232.84475 -232.92332 -232.99437
[57] -233.05831 -233.11551 -233.16633 -233.21110 -233.25013 -233.28372 -233.31215 -233.33567
[65] -233.35454
$niter
[1] 64
$cvg
[1] 8.086056e-05 # relative tolerance of -loglikelihood at convergence
- Now plot the results.
# Run smoother at the estimates (using the new Ksmooth script)
sQ = em$Q %^% .5
sR = sqrt(em$R)
ks = Ksmooth(y, A, em$mu0, em$Sigma0, em$Phi, sQ, sR)
# Pull out the values
y1s = ks$Xs[1,,]
y2s = ks$Xs[2,,]
y3s = ks$Xs[3,,]
p1 = 2*sqrt(ks$Ps[1,1,])
p2 = 2*sqrt(ks$Ps[2,2,])
p3 = 2*sqrt(ks$Ps[3,3,])
# plots
par(mfrow=c(3,1))
tsplot(WBC, type='p', pch=19, ylim=c(1,5), col=6, lwd=2, cex=1)
lines(y1s)
xx = c(time(WBC), rev(time(WBC))) # same for all
yy = c(y1s-p1, rev(y1s+p1))
polygon(xx, yy, border=8, col=astsa.col(8, alpha = .1))
tsplot(PLT, type='p', ylim=c(3,6), pch=19, col=4, lwd=2, cex=1)
lines(y2s)
yy = c(y2s-p2, rev(y2s+p2))
polygon(xx, yy, border=8, col=astsa.col(8, alpha = .1))
tsplot(HCT, type='p', pch=19, ylim=c(20,40), col=2, lwd=2, cex=1)
lines(y3s)
yy = c(y3s-p3, rev(y3s+p3))
polygon(xx, yy, border=8, col=astsa.col(8, alpha = .1))
๐คย EM with Parameter Constraints
๐ก The script doesnโt allow constraints on the parameters, but constrained parameter estimation can be accomplished by being a little clever. We demonstrate by fitting an AR(2) with noise.
The model is
โโxt = ฯ1 xt-1 + ฯ2 xt-2 + wt ย ย and ย ย yt = xt + vt.
or in state-space form
\[\begin{pmatrix}x_t\cr x_{t-1}\end{pmatrix} = \begin{bmatrix}\phi_1 & \phi_2\cr 1 & 0\end{bmatrix}\begin{pmatrix}x_{t-1}\cr x_{t-2}\end{pmatrix} + \begin{pmatrix}w_{t}\cr 0\end{pmatrix}\] \[y_t = \begin{bmatrix}1 & 0\end{bmatrix} \begin{pmatrix}x_t\cr x_{t-1}\end{pmatrix} + v_t\]Here we go
# generate some data
set.seed(1)
num = 100
phi1 = 1.5; phi2 =-.75 # the ar parameters
Phi= diag(0,2)
Phi[1,1] = phi1; Phi[1,2] = phi2
Phi[2,1] = 1
Q = diag(0, 2)
Q[1,1] = 1 # var(w[t])
# simulate the AR(2) states (var w[t] is 1 by default)
x = sarima.sim(ar = c(phi1, phi2), n=num)
# the observations
A = cbind(1, 0)
R = .01 # var(v[t])
y = x + rnorm(num, 0, sqrt(R))
# fix the initial values throughout
mux = rbind(0, 0)
Sigmax = matrix(c(8.6,7.4,7.4,8.6), 2,2)
# for estimation, use these not so great starting values
Phi[1,1]=.1 ; Phi[1,2]=.1
Q[1,1] = .1
R = .1
###########################################################
#### run EM one at a time, then re-constrain the parms ####
###########################################################
###-- with some extra coding, the loop can be stopped when a given
###-- tolerance is reached by monitoring em$like at each iteration ...
for (i in 1:75){
em = EM(y, A, mu0=mux, Sigma0=Sigmax, Phi, Q, R, max.iter = 1)
Phi= diag(0,2)
Phi[2,1] = 1
Phi[1,1] = em$Phi[1,1]; Phi[1,2] = em$Phi[1,2]
Q = diag(0, 2)
Q[1,1] = em$Q[1,1]
R = em$R
}
# ### some output ###
# Note that the iteration output used to start at 1,
# but now it more precisely starts at 0
#
#iteration -loglikelihood
# 0 1485.486
#iteration -loglikelihood
# 0 95.26131
#iteration -loglikelihood
# 0 73.45769
#iteration -loglikelihood
# 0 63.83681
#iteration -loglikelihood
# 0 58.44693
# . .
# . .
#iteration -loglikelihood
# 0 48.69579
#iteration -loglikelihood
# 0 48.69518
#iteration -loglikelihood
# 0 48.6946
#iteration -loglikelihood
# 0 48.69405
############################
## Results
Phi # (actual 1.5 and -.75)
## [,1] [,2]
## [1,] 1.513079 -0.737669
## [2,] 1.000000 0.000000
Q # (actual 1)
## [,1] [,2]
## [1,] 0.7973415 0
## [2,] 0.0000000 0
R # (actual .01)
## [,1]
## [1,] 0.04462222
๐ And thatโs how itโs done.
10. Bayesian Techniques
๐ก Weโve added some scripts to handle Bayesian analysis. So far we have
ar.mcmcto fit AR models
SV.mcmcto fit stochastic volatility models
ffbsthe forward filter backward sampling (FFBS) algorithm - part of Gibbs for LINEAR SS models
AR Models
๐ต For a minimal example, weโll fit an AR(2) to the Recruitment (rec) data.
โโxt = ฯ0 + ฯ1 xt-1 + ฯ2 xt-2 + ฯ wt
where wt is standard Gaussian white noise.
You just need to input the data and the order because the priors, the number of MCMC iterations (including burnin) have defaults. The method is fast and efficient. The output includes a graphic (unless plot = FALSE) and some quantiles of the sampled parameters. For further details and references, see the help file (?ar.mcmc).
u = ar.mcmc(rec, 2)
with screen output
Quantiles:
phi0 phi1 phi2 sigma
1% 3.991699 1.268724 -0.5604687 8.799926
2.5% 4.504180 1.276576 -0.5460294 8.903435
5% 4.897493 1.289001 -0.5306669 9.001894
10% 5.312776 1.302280 -0.5163514 9.109764
25% 5.976938 1.325613 -0.4907099 9.291095
50% 6.780525 1.353442 -0.4614311 9.498246
75% 7.571304 1.380684 -0.4361400 9.703718
90% 8.235147 1.406633 -0.4130296 9.913079
95% 8.643331 1.424673 -0.3985069 10.018678
97.5% 8.928998 1.435397 -0.3874075 10.130158
99% 9.482394 1.458155 -0.3751349 10.335975
and graphics (now uses tspairs)
The draws are returned invisibly:
head(u)
# phi0 phi1 phi2 sigma
# [1,] 6.414775 1.353891 -0.4498024 9.055021
# [2,] 8.140380 1.417450 -0.5423222 9.631700
# [3,] 6.251149 1.381373 -0.4903105 9.012220
# [4,] 5.635571 1.324994 -0.4188650 10.144267
# [5,] 8.116873 1.344782 -0.4676563 8.994929
# [6,] 6.118467 1.312165 -0.4166178 9.362385
Gibbs Sampling for Linear State Space Models
๐ต The package has an ffbs script (Forward Filtering Backward Sampling - FFBS)
to facilitate Gibbs sampling for linear state space models:
โโ xt = ฮฆ xt-1 + ฮฅ ut + sQ wt, ย ย yt = At xt + ฮ ut + sR vt,
wt ~ iid Np(0, I) โฅ vt ~ iid Nq(0, I) โฅ x0 ~ Np(ฮผ0, ฮฃ0) and ut is an r-dimensional input sequence.
If $\Theta$ represents the parameters, $x_{0:n}$ the states, $y_{1:n}$ the data, then the generic Gibbs sampler is (rinse and repeat)
โโ (1) sample $\Thetaโ \sim p(\Theta \mid x_{0:n}, y_{1:n})$
โโ (2) sample $x_{0:n}โ \sim p(x_{0:n} \mid \Thetaโ, y_{1:n})$
ffbs accomplishes (2). There is NOT a script to do (1) because the model is too general to build a decent script to cover the possibilities. The script uses version 1 of Kfilter and Ksmooth.
๐ Example: Local Level Model
โโxt = xt-1 + wt ย ย ย and ย ย ย yt = xt + 3 vt
where wt and vt are independent standard Gaussian noise.
# generate some data from the model
set.seed(1)
sQ = 1; sR = 3 # 2 parameters
mu0 = 0; Sigma0 = 10; x0 = rnorm(1,mu0,Sigma0) # initial state
n = 100; w = rnorm(n); v = rnorm(n)
x = c(x0 + sQ*w[1]) # initialize states
y = c(x[1] + sR*v[1]) # initialize obs
for (t in 2:n){
x[t] = x[t-1] + sQ*w[t]
y[t] = x[t] + sR*v[t]
}
# we'll plot these below
# set up the Gibbs sampler
burn = 50; n.iter = 1000
niter = burn + n.iter
draws = c()
# priors for R (a,b) and Q (c,d) IG distributions
a = 2; b = 2; c = 2; d = 1
###-- (1) initialize - sample sQ and sR --###
sR = sqrt(1/rgamma(1,a,b))
sQ = sqrt(1/rgamma(1,c,d))
# progress bar
pb = txtProgressBar(min = 0, max = niter, initial = 0, style=3)
# run it
for (iter in 1:niter){
###-- (2) sample the states --###
run = ffbs(y,A=1,mu0=0,Sigma0=10,Phi=1,sQ,sR)
###-- (1) sample the parameters --###
xs = as.matrix(run$Xs)
R = 1/rgamma(1, a+n/2, b+sum((y-xs)^2)/2)
sR = sqrt(R)
Q = 1/rgamma(1, c+(n-1)/2, d+sum(diff(xs)^2)/2)
sQ = sqrt(Q)
## store everything
draws = rbind(draws,c(sQ,sR,xs))
setTxtProgressBar(pb, iter)
}
close(pb)
# pull out the results for easy plotting
draws = draws[(burn+1):(niter),]
q025 = function(x){quantile(x,0.025)}
q975 = function(x){quantile(x,0.975)}
xs = draws[,3:(n+2)]
lx = apply(xs,2,q025)
mx = apply(xs,2,mean)
ux = apply(xs,2,q975)
# some graphics
tsplot(cbind(x,y,mx), spag=TRUE, ylab='', col=c(6,8,4), lwd=c(1,1,1.5), type='o', pch=c(NA,1,NA))
legend('topleft', legend=c("x(t)","y(t)","xs(t)"), lty=1, col=c(6,8,4), lwd=1.5, bty="n", pch=c(NA,1,NA))
points(y)
xx=c(1:100, 100:1)
yy=c(lx, rev(ux))
polygon(xx, yy, border=NA, col=astsa.col(4,.1))
# and the parameters

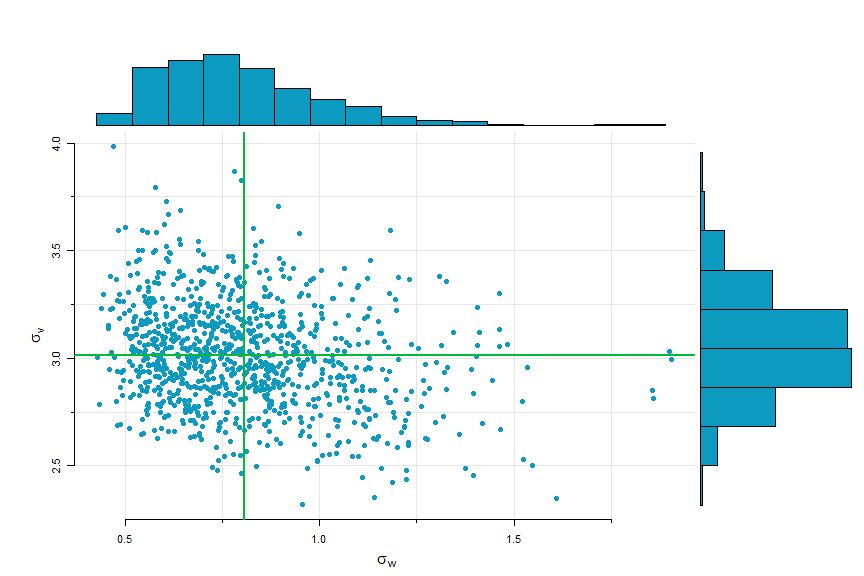

scatter.hist(draws[,1],draws[,2], xlab=expression(sigma[w]), ylab=expression(sigma[v]),
reset.par = FALSE, pt.col=5, hist.col=5)
abline(v=mean(draws[,1]), col=3, lwd=2)
abline(h=mean(draws[,2]), col=3, lwd=2)
๐ Example: Structural Model
Hereโs the model and some discussion. $y_t = \text{jj}$ (Johnson & Johnson data), $T_t$ is trend and $S_t$ is quarterly season and
โโ $y_t = T_t + S_t + v_t$ โ where โ $T_t = \phi T_{t-1} + w_{t1}$ โ and โ $S_t+S_{t-1}+S_{t-2}+S_{t-3} = w_{t2}$.
The set up (Example 6.26 in edition 5 of the text for more details):
y = jj # the data
### setup - model and initial parameters
set.seed(90210)
n = length(y)
A = matrix(c(1,1,0,0), 1, 4)
Phi = diag(0,4)
Phi[1,1] = 1.03
Phi[2,] = c(0,-1,-1,-1); Phi[3,]=c(0,1,0,0); Phi[4,]=c(0,0,1,0)
mu0 = rbind(.7,0,0,0)
Sigma0 = diag(.04, 4)
sR = 1 # observation noise standard deviation
sQ = diag(c(.1,.1,0,0)) # state noise standard deviations on the diagonal
### initializing and hyperparameters
burn = 50
n.iter = 1000
niter = burn + n.iter
draws = NULL
a = 2; b = 2; c = 2; d = 1 # hypers (c and d for both Qs)
pb = txtProgressBar(min = 0, max = niter, initial = 0, style=3) # progress bar
### start Gibbs
for (iter in 1:niter){
# draw states
run = ffbs(y,A,mu0,Sigma0,Phi,sQ,sR) # initial values are given above
xs = run$Xs
# obs variance
R = 1/rgamma(1,a+n/2,b+sum((as.vector(y)-as.vector(A%*%xs[,,]))^2))
sR = sqrt(R)
# beta where phi = 1+beta
Y = diff(xs[1,,])
D = as.vector(lag(xs[1,,],-1))[-1]
regu = lm(Y~0+D) # est beta = phi-1
phies = as.vector(coef(summary(regu)))[1:2] + c(1,0) # phi estimate and SE
dft = df.residual(regu)
Phi[1,1] = phies[1] + rt(1,dft)*phies[2] # use a t to sample phi
# state variances
u = xs[,,2:n] - Phi%*%xs[,,1:(n-1)]
uu = u%*%t(u)/(n-2)
Q1 = 1/rgamma(1,c+(n-1)/2,d+uu[1,1]/2)
sQ1 = sqrt(Q1)
Q2 = 1/rgamma(1,c+(n-1)/2,d+uu[2,2]/2)
sQ2 = sqrt(Q2)
sQ = diag(c(sQ1, sQ2, 0,0))
# store results
trend = xs[1,,]
season= xs[2,,]
draws = rbind(draws,c(Phi[1,1],sQ1,sQ2,sR,trend,season))
setTxtProgressBar(pb,iter)
}
close(pb)
##- display results -##
# set up
u = draws[(burn+1):(niter),]
parms = u[,1:4]
q025 = function(x){quantile(x,0.025)}
q975 = function(x){quantile(x,0.975)}
## plot parameters (display at end)

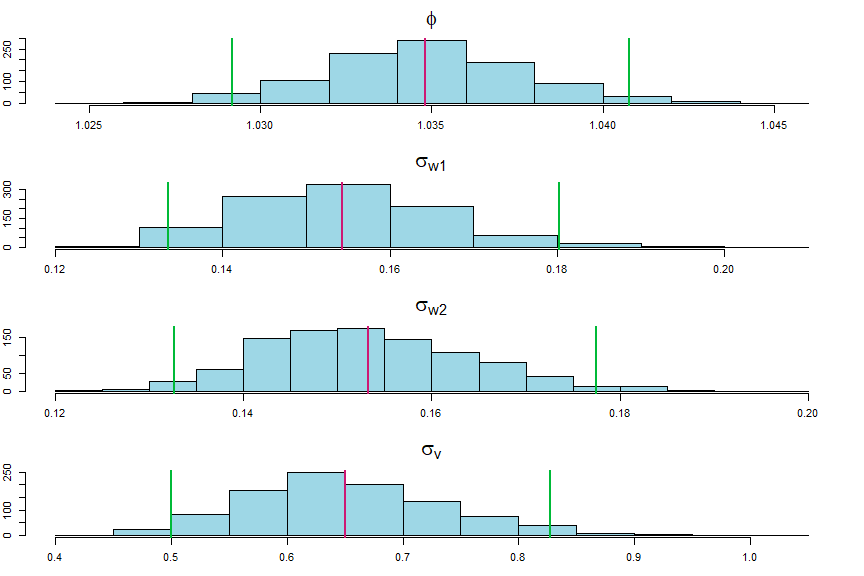

names= c(expression(phi), expression(sigma[w1]), expression(sigma[w2]), expression(sigma[v]))
par(mfrow=c(4,1), mar=c(2,1,2,1)+1)
for (i in 1:4){
hist(parms[,i], col=astsa.col(5,.4), main=names[i], xlab='', cex.main=2)
u1 = apply(parms,2,q025); u2 = apply(parms,2,mean); u3 = apply(parms,2,q975);
abline(v=c(u1[i],u2[i],u3[i]), lwd=2, col=c(3,6,3))
}
### plot states (display at end)
# trend
dev.new()
par(mfrow=2:1)
tr = ts(u[,5:(n+4)], start=1960, frequency=4)
ltr = ts(apply(tr,2,q025), start=1960, frequency=4)
mtr = ts(apply(tr,2,mean), start=1960, frequency=4)
utr = ts(apply(tr,2,q975), start=1960, frequency=4)
tsplot(mtr, ylab='', col=4, main='trend')
xx=c(time(mtr), rev(time(mtr)))
yy=c(ltr, rev(utr))
polygon(xx, yy, border=NA, col=astsa.col(4,.1))
# trend + season
sea = ts(u[,(n+5):(2*n)], start=1960, frequency=4)
lsea = ts(apply(sea,2,q025), start=1960, frequency=4)
msea = ts(apply(sea,2,mean), start=1960, frequency=4)
usea = ts(apply(sea,2,q975), start=1960, frequency=4)
tsplot(msea+mtr, ylab='', col=4, main='trend + season')
xx=c(time(msea), rev(time(msea)))
yy=c(lsea+ltr, rev(usea+utr))
polygon(xx, yy, border=NA, col=astsa.col(4,.1))
๐ต And letโs check the efficiency of the sampler ( see ESS ); recall niter = 1000.
colnames(parms)=c('Phi11','sQ1','sQ2','sR')
apply(parms,2,ESS)
Phi11 sQ1 sQ2 sR
571.0002 1000.0000 1000.0000 270.7789
# and maybe look at some other things (not displayed)
tsplot(parms, col=4, ncolm=2) # plot the traces
acfm(parms) # view the ACFs
ESS
๐ท The effective sample size (ESS) is a measure of efficiency of an MCMC procedure based on estimating a posterior mean. The package now includes a script to estimate ESS given a sequence of samples. It was used in the display for the Stochastic Volatility example and just above in the structural equation model.
Hereโs another example.
# Fit an AR(2) to the Recruitment series
u = ar.mcmc(rec, 2, n.iter = 1000, plot = FALSE)
# Quantiles:
# phi0 phi1 phi2 sigma
# 1% 4.198 1.256 -0.5601 8.875
# 2.5% 4.640 1.274 -0.5459 8.937
# . . .
# then calculate the ESSs
apply(u, 2, ESS)
phi0 phi1 phi2 sigma
1000 1000 1000 1000
# nice
11. Stochastic Volatility Models
ย ย ๐ฏastsa has classical and Bayesian versions โฆ
Bayesian:
๐ต For an example, weโll fit a stochastic volatility model to the S&P500 weekly returns(sp500w). Weโve also added some new financial data sets, sp500.gr (daily S&P 500 returns) and BCJ (daily returns for 3 banks, Bank of America, Citi, and JP Morgan Chase). The model is
โโxt = ฯ xt-1 + ฯ wt , ย ย and ย ย ย yt =ฮฒ exp (½ xt) ฮตt
where wt and ฮตt are independent standard Gaussian white noise, xt is the hidden log-volatility process and yt are the returns. Most of the inputs have defaults, so a minimal run just needs the data specified.
u = SV.mcmc(sp500w) # put the results in an object - it's important
The immediate output shows the status, then the time to run and the acceptance rate of the Metropolis MCMC (which should be close to 28%):
|= = = = = = = = = = = = = = = = = = = = = = = = =| 100%
Time to run (secs):
user system elapsed
42.02 0.71 44.73
The acceptance rate is: 29.7%
and graphics (traces, effective sample sizes, ACFs, histograms with 2.5%-50%-97.5% quantiles followed by the posterior mean log-volatility with 95% credible intervals).

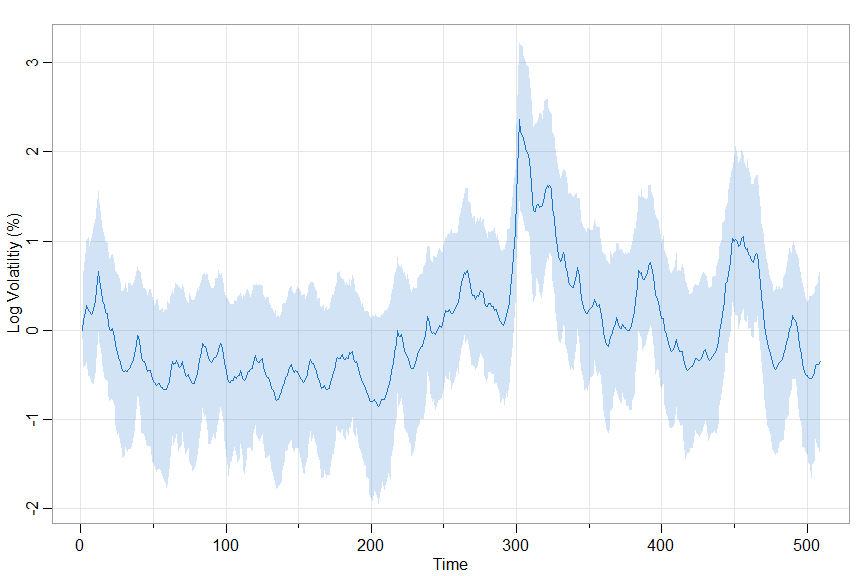

๐ฉ The Effective Sample Size (ESS) in the graphic above were calculated using the script ESS.
An easy way to see the defaults (a list of options) is to look at the structure of the object:
str(u)
List of 5
$ phi : num [1:1000] 0.764 0.764 0.764 0.764 0.764 ...
$ sigma : num [1:1000] 0.36 0.36 0.36 0.36 0.36 ...
$ beta : num [1:1000] 0.0199 0.0206 0.0208 0.0202 0.0208 ...
$ log.vol: num [1:1000, 1:509] 0.0146 0.0266 -0.0694 -0.1368 -0.0442 ...
$ options:List of 8
..$ nmcmc : num 1000
..$ burnin : num 100
..$ init : num [1:3] 0.9 0.5 0.1
..$ hyper : num [1:5] 0.9 0.5 0.075 0.3 -0.25
..$ tuning : num 0.03
..$ sigma_MH: num [1:2, 1:2] 1 -0.25 -0.25 1
..$ npart : num 10
..$ mcmseed : num 90210
๐ก And as always, references and details are in the help file (?SV.mcmc). The techniques are not covered in tsa4.
Classical:
๐ฆ Weโll fit an SV model with feedback (aka leverage) to the daily returns of Bank of America (in astsa). The returns are $r_t$ and the log volatility is $x_t = \log \sigma_t^2$ with \(x_{t+1} = \gamma r_t + \phi x_t + \sigma w_t.\) The prior return feeds back directly into the volatility. The observations are $y_t = \log r_t^2$, and \(y_t = \alpha + x_t + \eta_t\) where $\eta_t$ is a mixture of two normals, one centered at zero.
More details are in the text (obviously). You can have $\text{corr}(w_t, \eta_t) = \rho$, but itโs not needed if you include feedback.
SV.mle(BCJ[,'boa'], feedback=TRUE, rho=0) # rho not included if no start value given
Coefficients:
gamma phi sQ alpha sigv0 mu1 sigv1 rho
estimates -1.9464 0.9967 0.1260 -8.5394 1.1997 -2.1895 3.6221 0.1982
SE 0.5063 0.0023 0.0266 0.7049 0.0509 0.1778 0.1085 0.3970
Notice that $\rho$ is not significant and its SE is huge! And you get a graphic of the predicted $x_t$ superimpose on $r_t$ (times 10), and a comparison of the distribution of $\eta_t$ vs $\log \chi_1^2$,

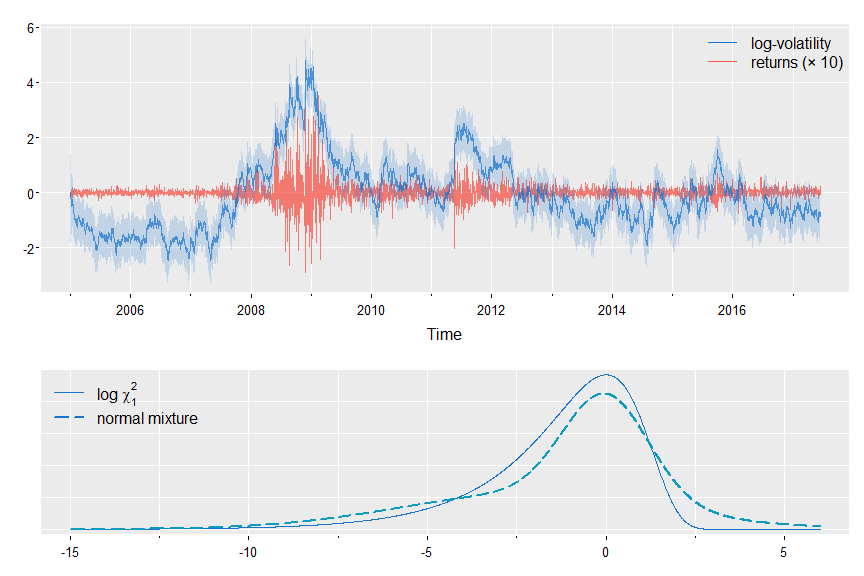

To do the same run but without $\rho$, just donโt give it an initial value:
SV.mle(BCJ[,'boa'], feedback=TRUE)
# and output (the graphics are nearly the same so it's a no show)
Coefficients:
gamma phi sQ alpha sigv0 mu1 sigv1
estimates -1.9514 0.9968 0.1287 -8.5241 1.1925 -2.1916 3.6965
SE 0.5029 0.0023 0.0267 0.7215 0.0455 0.1806 0.1083
and to ignore the feedback term, just leave it out of the call (but why would you?): SV.mle(BCJ[,'boa'])
12. Arithmetic
๐ก The package has a few scripts to help with items related to time series and stochastic processes.
ARMAtoAR
๐ต R stats has an ARMAtoMA script to help visualize the causal form of a model. To help visualize the invertible form of a model, astsa includes an ARMAtoAR script. For example,
# ARMA(2, 2) in causal form [rounded for your pleasure]
ARMAtoMA(ar = c(1.5, -.75), ma = c(-.8,.4), 50)
[1] 0.7000 0.7000 0.5250 0.2625 0.0000 -0.1969 -0.2953 -0.2953 -0.2215 -0.1107
[11] 0.0000 0.0831 0.1246 0.1246 0.0934 0.0467 0.0000 -0.0350 -0.0526 -0.0526 ...
giving some of the ฯ-weights in the xt = โฯj wt-j representation of the model (wt is white noise). If you want to go the other way, use
# ARMA(2, 2) in invertible form [rounded for your pleasure]
ARMAtoAR(ar = c(1.5, -.75), ma = c(-.8,.4), 50)
[1] -0.7000 -0.2100 0.1120 0.1736 0.0941 0.0058 -0.0330 -0.0287 -0.0098 0.0037
[11] 0.0068 0.0040 0.0005 -0.0012 -0.0012 -0.0004 0.0001 0.0003 0.0002 0.0000 ...
giving some of the ฯ-weights in the wt = โฯj xt-j representation of the model.
๐ก As a side note, you can check if a model is causal and invertible using arma.spec() from astsa, and if youโre not careful
arma.spec(ar = c(1.5, -.75), ma = c(-.8,-.4))
WARNING: Model Not Invertible
Error in arma.spec(ar = c(1.5, -0.75), ma = c(-0.8, -0.4)) : Try Again
Matrix Powers
๐ต We compute ฮฃย -ยฝ where ฮฃ is a variance-covariance matrix when calculating the spectral envelope. Also, the square root of a covariance matrix can be useful for state space modeling via Kfilter, Ksmooth, and EM.
So, we built in a script called matrixpwr that computes powers of a square matrix, including negative powers for nonsingular matrices.
Also, %^% is available as a more intuitive operator. For example,
var(econ5)%^%-.5 # rounded here (not by the script) for you pleasure
[,1] [,2] [,3] [,4] [,5]
[1,] 1.073 0.005 -0.017 0.006 0.021
[2,] 0.005 0.017 -0.019 -0.009 -0.010
[3,] -0.017 -0.019 0.026 0.006 0.004
[4,] 0.006 -0.009 0.006 0.025 0.006
[5,] 0.021 -0.010 0.004 0.006 0.033
where
round(var(econ5), 1)
unemp gnp consum govinv prinv
unemp 2.9 782.4 565.4 117.4 114.2
gnp 782.4 661297.3 449876.0 111333.5 117830.4
consum 565.4 449876.0 307483.0 74977.9 79860.3
govinv 117.4 111333.5 74977.9 20780.9 19381.8
prinv 114.2 117830.4 79860.3 19381.8 22126.5
๐ต But also, if youโre playing with Markov Chains, you can learn about long run distributions by raising the transition matrix to a large power. Hereโs a demonstration of convergence in a 2 state MC:
( P = matrix(c(.7,.5,.3,.5), 2) ) # 1 step transitions
[,1] [,2]
[1,] 0.7 0.3
[2,] 0.5 0.5
( P %^% 5 ) # 5 step transitions
[,1] [,2]
[1,] 0.62512 0.37488
[2,] 0.62480 0.37520
( P %^% 50 ) # 50 step transitions
[,1] [,2]
[1,] 0.625 0.375
[2,] 0.625 0.375
ฯ(1) = 5/(3+5) = .625 and ฯ(2) = 3/(3+5)=.375 and almost there in 5 steps.
A note - if you use it in an expression, surround the operation with parentheses:
c(.5,.5) %*% ( P %^% 50 ) # toss a coin for initial state
[,1] [,2]
[1,] 0.625 0.375
# but this draws an error because %*% is first
c(.5,.5) %*% P %^% 50
Polynomial Multiplication
๐ต The script sarima.sim uses polyMul when simulating data from seasonal ARIMA models.
For example,
โ โ (1 - 1.5B1 + .75B2)ร(1 - .9B12) xt =wt
which is an ARIMA(2,0,0)ร(1,0,0)12 model. You can add MA and SMA parts to your liking in the same manner. Hereโs the AR polynomial on the left (ARpoly) and then the AR coefficients when on the right (ARparm):
ar = c(1, -1.5, .75)
sar = c(1, rep(0,11), -.9)
AR = polyMul(ar,sar)
( ARpoly = cbind(order=0:14, ARpoly=AR) )
order ARpoly
[1,] 0 1.000
[2,] 1 -1.500
[3,] 2 0.750
[4,] 3 0.000
[5,] 4 0.000
[6,] 5 0.000
[7,] 6 0.000
[8,] 7 0.000
[9,] 8 0.000
[10,] 9 0.000
[11,] 10 0.000
[12,] 11 0.000
[13,] 12 -0.900
[14,] 13 1.350
[15,] 14 -0.675
which is โ xt -1.5 xt-1 +.75 xt-2 - .9 xt-12 + 1.35 xt-13 - .675 xt-14 = wt , โ or
( ARparm = cbind(order=1:14, ARparm=-AR[-1]) )
order ARparm
[1,] 1 1.500
[2,] 2 -0.750
[3,] 3 0.000
[4,] 4 0.000
[5,] 5 0.000
[6,] 6 0.000
[7,] 7 0.000
[8,] 8 0.000
[9,] 9 0.000
[10,] 10 0.000
[11,] 11 0.000
[12,] 12 0.900
[13,] 13 -1.350
[14,] 14 0.675
which is โ xt = 1.5 xt-1 -.75 xt-2 + .9 xt-12 -1.35 xt-13 + .675 xt-14 + wt .
๐คก That was fun!
13. The Spectral Envelope
DNA and the Spectral Envelope
๐ก There are 2 scripts to accomplish spectral analysis of DNA sequences,
specenvanddna2vector
and then there are a few data files,
bnrf1ebv,bnrf1hvs, andEBV.
๐ต The first and second files are the nucleotide sequence of the BNRF1 gene (3741 bp) of the Epstein-Barr virus (EBV) and of the herpesvirus saimiri (HVS) using the coding 1=A, 2=C, 3=G, 4=T. EBV is the FASTA file of the entire Epstein-Barr virus sequence taken from NCBI, 172281 bp. Itโs not useful on its own, but using dna2vector, different regions can be explored. For example,
# EBV looks like "AGAATTCGTCTTG ...", one very long string
ebv = dna2vector(EBV)
head(ebv)
[,1] [,2] [,3] [,4]
[1,] 1 0 0 0
[2,] 0 0 1 0
[3,] 1 0 0 0
[4,] 1 0 0 0
[5,] 0 0 0 1
[6,] 0 0 0 1
๐ต To use specenv, the input sequence has to be a matrix of indicators like the output above. Thatโs where dna2vector comes in. There are many examples in the help file (?dna2vector), but hereโs a few to whet the appetite.
๐ช Letโs say you download a DNA sequence as a FASTA file called sequence.fasta.
It will look something like this:
>HSBGPG Human gene for bone gla protein (BGP)
GGCAGATTCCCCCTAGACCCGCCCGCACCATGGTCAGGCATGCCCCTCCTCATCGCTGGGCACAGCCCAGAGGGT
ATAAACAGTGCTGGAGGCTGGCGGGGCAGGCCAGCTGAGTCCTGAGCAGCAGCCCAGCGCAGCCACCGAGACACC
ATGAGAGCCCTCACACTCCTCGCCCTATTGGCCCTGGCCGCACTTTGCATCGCTGGCCAGGCAGGTGAGTGCCCC
If the file is in the working directory, the following code can be used to read the data into the session, create the indicator sequence and save it as a compressed R data file:
fileName <- 'sequence.fasta' # name of FASTA file
data <- readChar(fileName, file.info(fileName)$size) # input the sequence
bone <- dna2vector(data) # convert it to indicators
save(bone, file='bone.rda') # save the file as a compressed file
load('bone.rda') # and load 'bone' when you need it
๐ช Here are some other examples using dna2vector, which takes two arguments,
data and alphabet. Of course data is the object that contains the sequence data, and alphabet is the particular alphabet used in the file, which defaults to ` alphabet = c(โAโ, โCโ, โGโ, โTโ) for strings and alphabet = 1:4 for numeric data such as bnrf1ebv`.
####################################################################
## gene BNRF1 of EBV with 1, 2, 3, 4 for "A", "C", "G", "T" ##
## remember 'bnrf1ebv' is a data set in astsa and it is a numeric ##
####################################################################
xdata = dna2vector(bnrf1ebv)
# note:
head(bnrf1ebv)
[1] 1 4 3 3 1
# and
head(xdata)
[,1] [,2] [,3] [,4]
[1,] 1 0 0 0
[2,] 0 0 0 1
[3,] 0 0 1 0
[4,] 0 0 1 0
[5,] 1 0 0 0
##########################
## raw GenBank sequence ##
##########################
data <-
c("1 agaattcgtc ttgctctatt cacccttact tttcttcttg cccgttctct ttcttagtat
61 gaatccagta tgcctgcctg taattgttgc gccctacctc ttttggctgg cggctattgc")
xdata = dna2vector(data, alphabet=c('a', 'c', 'g', 't'))
head(xdata)
[,1] [,2] [,3] [,4]
[1,] 1 0 0 0
[2,] 0 0 1 0
[3,] 1 0 0 0
[4,] 1 0 0 0
[5,] 0 0 0 1
##########################
## raw FASTA sequence ##
##########################
data <-
c("AGAATTCGTCTTGCTCTATTCACCCTTACTTTTCTTCTTGCCCGTTCTCTTTCTTAGTATGAATCCAGTA
TGCCTGCCTGTAATTGTTGCGCCCTACCTCTTTTGGCTGGCGGCTATTGCCGCCTCGTGTTTCACGGCCT")
xdata = dna2vector(data)
head(xdata)
[,1] [,2] [,3] [,4]
[1,] 1 0 0 0
[2,] 0 0 1 0
[3,] 1 0 0 0
[4,] 1 0 0 0
[5,] 0 0 0 1
๐ก specenv calculates the spectral envelope defined in the original paper, summarized in Statistical Science and discussed in Chapter 7 of the text.
By default, it produces a graph of the spectral envelope and an approximate significance threshold and invisibly return a matrix containing: frequency, spectral envelope ordinates, and scaling of the categories in the order of the categories in the alphabet.
๐ช A very simple run is something like this
xdata = dna2vector(bnrf1ebv)
u = specenv(xdata, spans=c(7,7)) # graphic below

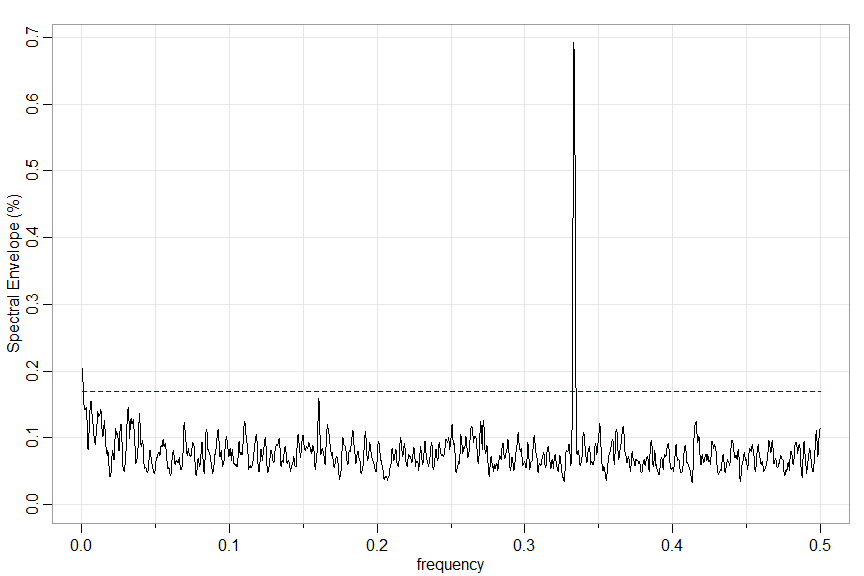

head(u) # output - coefs are scalings in order of 'alphabet' (A C G T here)
freq specenv coef[1] coef[2] coef[3] coef[4]
[1,] 0.00025 0.002034738 -0.5014652 -0.5595067 -0.6599128 0
[2,] 0.00050 0.001929567 -0.5162806 -0.5557567 -0.6516047 0
[3,] 0.00075 0.001747429 -0.5402356 -0.5498484 -0.6370339 0
[4,] 0.00100 0.001587832 -0.5716387 -0.5398917 -0.6178560 0
[5,] 0.00125 0.001511232 -0.6025964 -0.5307763 -0.5959481 0
๐ช One more exampleโฆ you can specify a section (section = start:end) to work on and the significance threshold (or turn it off significance = NA), plus other options.
Hereโs one for a section of the EBV.
xdata = dna2vector(EBV)
u = specenv(xdata, spans=c(7,7), section=50000:52000) # repeat section

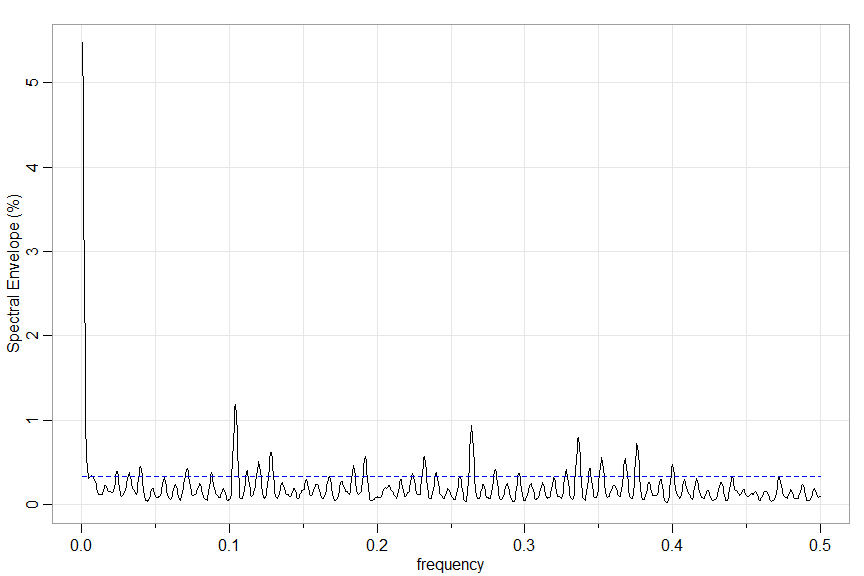

round(head(u), 3) # output
freq specenv coef[1] coef[2] coef[3] coef[4]
[1,] 0.000 0.055 0.520 -0.529 -0.671 0
[2,] 0.001 0.047 0.519 -0.531 -0.671 0
[3,] 0.001 0.037 0.514 -0.536 -0.669 0
[4,] 0.002 0.026 0.507 -0.547 -0.667 0
[5,] 0.002 0.017 0.493 -0.564 -0.662 0
Optimal Transformations and the Spectral Envelope
The script
specenv()
can also be used to find optimal transformations of real-valued time series. For example, weโve seen the NYSE returns are nonlinear.
x = astsa::nyse
# possible transformations include absolute value and squared value
xdata = cbind(x, abs(x), x^2)
par(mfrow=2:1)
u = specenv(xdata, real=TRUE, spans=c(3,3))
# peak at freq = .001 so let's
# plot the optimal transform
beta = u[2, 3:5] # scalings
b = beta/beta[2] # makes abs(x) coef=1
gopt = function(x) { b[1]*x+b[2]*abs(x)+b[3]*x^2 }
curve(gopt, -.2, .2, col=4, lwd=2, panel.first=Grid(nym=0))
gabs = function(x) { b[2]*abs(x) } # corresponding to |x|
curve(gabs, -.2, .2, add=TRUE, col=6)
legend('bottomright', lty=1, col=c(4,6), legend=c('optimal', 'absolute value'), bg='white')

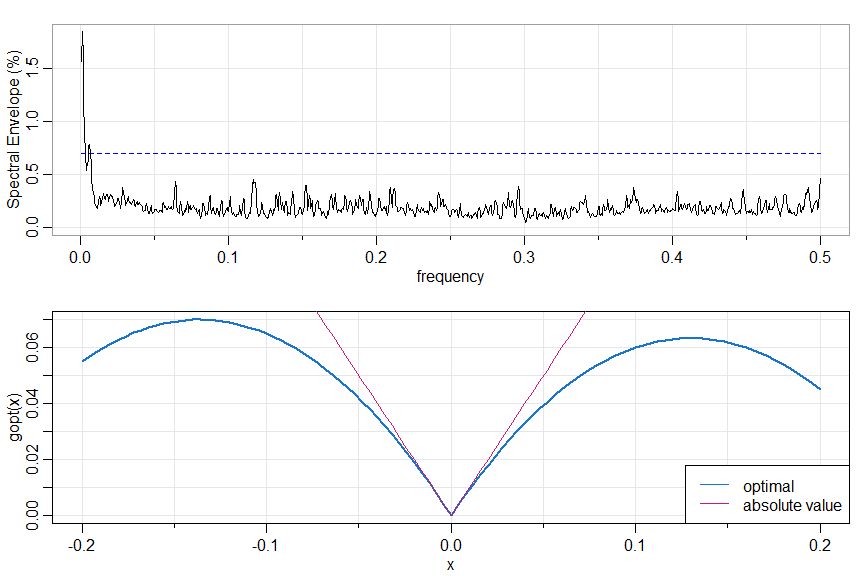

๐ ๐ ๐ โ THATโS A WRAP โ ๐ ๐ ๐
